US$13,000.00-14,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Required Paper
Single and Double Side PE Coated Paper
Logo Printing
Without Logo Printing
Voltage Supply
220V50Hz/380V50Hz/Customized
Transport Package
Wooden Case
Specification
2800*1400*1700 mm(L*W*H)
Production Capacity
55 Set/Sets Per Month
Product Description
Description

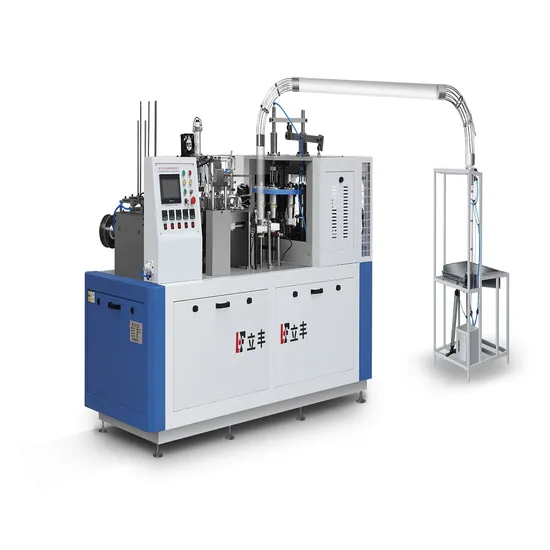

ZBJ-NZZ medium-speed paper cup forming machine is a multi station high-speed automatic machine producing both single and double
PE coated drink cups,ice cream cups through continuous process of automatic paper feeding,sealing,oil injection,bottom cutting,heating,
knuring curling and stacking.The machine adopting hot air system ,PLC contral ,servo motor driving,full-automatic failure warning,
counting,detection,stopping,etc.
Feature
1.The main motor use the best gear reduction unit
2.Two times bottom paper feeding
3.Operate panel use touch screen controlled
4.Adopt full-automatic sealed lubricating system,which ensure the long-term
uninterrupted high-speed running of the machine
5.The parts all adopt standard production,have high generality and good exchange
performance,and facilitate equipment maintenance.
Main tecnical parameter
general power | 9.5kw |
paper request | 150-350g/m²(single PE and double PE paper) |
voltage supply | 220v50hz/380v50hz/customized |
cup size | 1.5-12oz |
speed | 60-70pcs/min |
weight | 2600kg |
measurement | 2800*1400*1700*mm |
Our company
After sale service FAQ 1.Are you factory or trading company?
we are a factory and have 17 years' experience.
2.What certification do you have?
we have CE,BV and SGS.
3.When there is some problem with the machine, how you fix it ?
Basically,the machine is easy to operate and the engineer can teach the clients how to fix it by vedio or eamal.
The engineer are able to go overseas.
4.What is your payment term?
30% for deposit and 70% before shipping.
Thanks for browsing,if you are interested in our productions,please don't hesitate to contact us.
