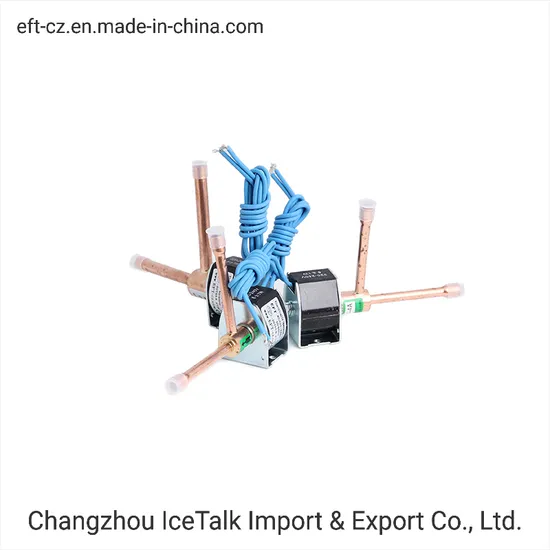

110V-240V Solenoid Valve for Refrigerators, Ice Makers and Ice-Cream Machine

Product Description

Dtf series solenoid valve consists of the valve body and the solenoid coils,pass off through the solenoid coil to control the valve opening and closing,ultimately to control the refrigerant media in the system off and flow.
Mainly used in refrigeration industry,application on ice cream machine,ice maker,frying ice cream machine,and vending machine.
The copper can be made in different shapes as required.

operating valtage	AC220V/110V±10%,50-60Hz
Insulation resistance	≥100MΩ
Pressure of electric strength test	4.5Mpa
Pressure of air tightness test	2.0Mpa
Highest pressure difference	Under 85% of rated voltage 2.1Mpa of difference of pressure work normal
Inner leaking amount	P=2.1Mpa,less than 50ml per minute
suitable temperature of fluid	-20ºC-120ºC
permitted ambient RH	below 95%

Model	drift diameter of valve	inlet	outlet	consumption of power	action form
DTF-1-2A	φ1.8mm	φ6mm	φ6mm	6W	act directly,when turn on,open
DTF-1-4A	φ4.0mm	φ6.4mm	φ6.4mm	6W	act directly,when turn on,open
DTF-1-6A	φ6.0mm	φ8mm	φ8mm	6W	act directly,when turn on,open
DTF-1-8A	φ8.0mm	φ10mm	φ10mm	10W	act directly,when turn on,open
DTF-2-2A	φ1.8mm	φ6mm	φ6mm	6W	act directly,when turn on,close

Q1: What is the Warranty for the solenoid valves?
A1: For the valves,we have one and half year warranty.If any quality problems on our side occured in this period ,we will make replacement.
Q2:: What is NO and NC?
A2: NO stands for normally open, that is , valve keeps open without power.If connect it with power, the valve will get closed.NC stands for normally closed,that is valve keeps closed without power.If connect it with power, the valve will get open.
Q.3: What is the assembly way of solenoid valves?
A.3 we suggest to make horizontal installation to enlarge life time,but it can be vertical installation if have special request.
Q4:Is there cheap shipping cost to import to our country?
A4: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest to ship by air.
Q5:Can we make customized product?
A5: Yes, we are good at making customized products.More than 30% of our products are customized products. We have successfully customized for customer from various fields from USA,Norway.Australia, Germany ect.
About us:
260 workers, over 10000 square metre workshop, 15 years experience, ISO, CE & FDA certificated, two hour reach Shanghai port, this is how we keep good quality and competitive prices for global valued customers.
We have been supplier for brands like Hoshizaki, Scotsman, Orien, Turbo Air for a long time.
Our main products cover ice evaporators, ice storage bins, pumps, defrost solenoid valve and etc.
If any product meed your demand, please feel free to contact us. Catalog & samples can be offered if price content.
We're sure your any inquiry or requirement will get prompt attention.
