Decooloff Grid Solar Parallel Operation Hybrid Solar Power Inverter for Home
Basic Info.
Model NO.
OPIP-2000
Output Power
>1000W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Waveform Distortion
Thd<3%(Linear Load)
Weight
4100/4500g
Warranty
1 Year
Dimension(mm)
397X180X78mm
Cooling Method
Intelligent Air Cooling
Transport Package
Carton
Specification
397x180x78mm
Trademark
LEYU
Origin
China
HS Code
8504403090
Production Capacity
10000pieces/Month
Packaging & Delivery
Package Size
51.00cm * 49.00cm * 32.00cm
Package Gross Weight
4.500kg
Product Description

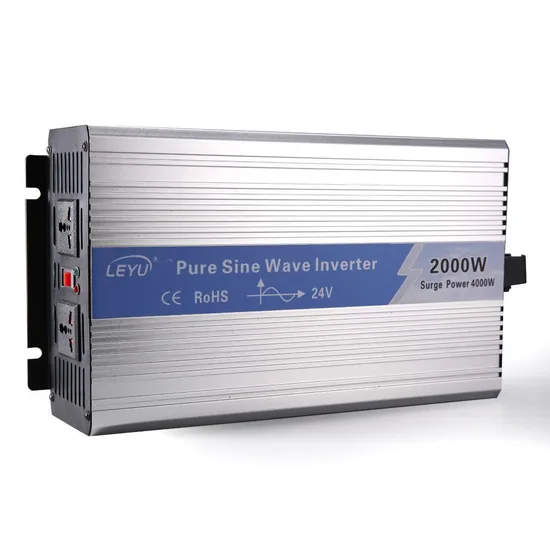

OPIP-2000 12v, 24V Pure sine wave 2000w 24V to 110V/220V inverter for home, hottest selling inverter for homeFeatures:
1.High -end chip ,high-performance CPU, improve the working reliability
2.Overvoltage,lowvoltage, over temperature ,overload, short circuit, reverse connection protection
3.Sound and light alarm under-voltage alarm, with frequency-conversion cooling fan
4.Soft-start function, increase loading capacity
5.Aluminum alloy shell, Heat eliminable
6.With battery clip and manual
Model series:
OPIP-1000-1 / OPIP-2000-1 / OPIP-3000-1
OPIP-1000-2 / OPIP-2000-2 / OPIP-3000-2
OPIM-1000-1 / OPIM-2000-1 / OPIM-3000-1
OPIM-1000-2 / OPIM-2000-2 / OPIM-3000-2 Product Parameters
| 2000W pure sine wave inverter | ||||||
| Product Features : | ||||||
| High transform efficiency ,fast start; | ||||||
| Pure sine wave output waveform; | ||||||
| Softstart function; | ||||||
| Strong adaptability and stability ; | ||||||
| With automatic over-current and output short circuit protection to avoid damage the equipment; | ||||||
| Temperature controlled fan,safe&efficient; | ||||||
| Safe and reliable with built in fuse. | ||||||
| 1 year warranty (Remarks: Customizable input voltage such as 36V,72V,96V,110V etc; output voltage such as 120v, 130v, 200V,240v, etc;Many kinds of sockets are available). | ||||||
| Model | OPIP-2K-1 | OPIP-2K-1 | OPIP-2K-1 | OPIP-2K-2 | OPIP-2K-2 | OPIP-2K-2 |
| Rated power | 2000W | |||||
| Peak power | 4000W | |||||
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | ||||
| Unload current less than | 1.1A | 0.7A | 0.5A | 1.1A | 0.7A | 0.5A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | |||||
| Output waveform | Pure Sine Wave | |||||
| Waveform distortion | THD<3%(Linear load) | |||||
| USB port | USB port | |||||
| Max.efficiency | 90% | |||||
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | ||||
| Over voltage | LED Red light on, shut down | |||||
| Over load | LED Red light on, shut down | |||||
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | |||||
| Short circuit | LED Red light on | |||||
| Input reverse polarity | Fuse burn-out | |||||
| Working temperature | -10°- +50° | |||||
| Storage temperature | -30°- +70° | |||||
| Dimension(mm) | 397x180x78mm | |||||
| Packing(mm) | 500x240x150mm | |||||
| Net./gross weight(g) | 4100/4500g | |||||
| QTY/Ctn | 4 Pcs | |||||
| Meas./Ctn(mm) | 510x490x315mm | |||||
| Gross weight/Ctn(g) | 18200g | |||||
| Warranty | 1 years | |||||
| Configuration | Standard | |||||
| Cooling method | Intelligent air cooling | |||||
| Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product | ||||||
