Good Quality Hot Mix 160 Tph Ylb2000 Mobile Asphalt Batch Plant Supplier

Product Description

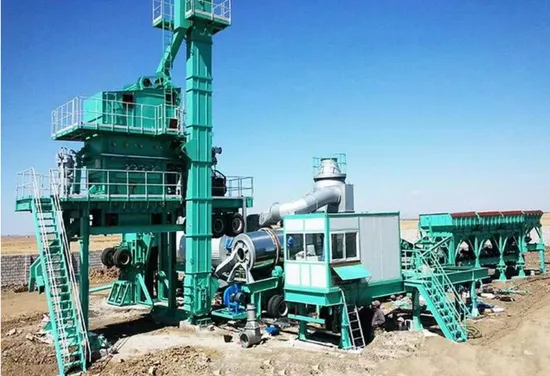

YLB Series mobile asphalt mixing plant is developed, designed, manufactured and put on sale by Liaoyuan Road Construction Machinery. It inherits the advantages of LB series asphalt batch mixing plant, and adds new elements including: containerized size, modular design and trailer and mobile chassis which make it possible for container transportation, fast mobilization and relocation.
YLB Asphalt Plant is designed for small and medium-sized pavement project which need frequent relocation. Complete plant can be dismantled and reinstalled in 5 days (not including the transportation period). Features:
Modular design; main dodules are equipped with trailers; fast and convenient for relocation; fit for road construction projects which needs frequent relocation;
Precise screening, accurate measurement, batch mixing; producing good quality finished asphalt;
PLC system, intelligent control; easy for operation.
Optimized drying drum and mixer, better performance; key parts made of wear resistant and sturdy material, longer service life.
Parameter

Model		YLB700	YLB1000	YLB1500	YLB2000
Capacity		60 t/h	80 t/h	120 t/h	160 t/h
Mixer Capacity		700 kg/batch	1000 kg/batch	1500 kg/batch	2000 kg/batch
Fuel Consumption		Diesel consumption: 5.5-7 kg/ton
Weighing Precision		Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2%
Hot Asphalt Temperature		130ºC-165ºC (adjustable)
Air Emissions		≤ 20 mg/Nm³
Working Noise		≤ 70 db(A)
Operation		Full Auto/Manual Operation
Installation Power		157 kW	241 kW	330 kW	412 kW
Voltage		220V/380V-50Hz (adjustable)
Plant Covering Area	Length	35 m	40 m	40 m	42 m
	Width	26 m	28 m	32 m	32 m
	Height	15 m	15 m	16 m	16 m
Documents		Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate.

EQUIPMENT CHARACTRESCITS:
