US$9,600.00-19,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Controller
Taiwan Syntec Controller
Table
Double Layer PVC Vacuum Table
Pump
5.5kw Air Cooling Pump
Dust Collector
3kw with Double Bags
Tool Sensor
Automatic Tool Sensor
Transport Package
Plywood Box
Specification
package: 3500mm*2000mm*1900mm
Production Capacity
600 Sets/ Year
Product Description

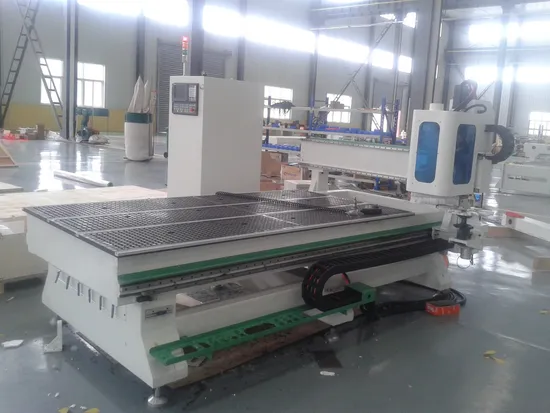

3D CNC Woodworking Engraving Machine
NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.
The standard configuration of NA-1530
Spindle Power | 9kw HSD |
Controller | Taiwan Syntec control system |
Motor | 750w Japanese Jaskawa servo motor |
Gear Reducer | Japanese Shimpo planetary gear reducer |
Table | Compact grade vacuum suction table |
Vacuum Pump | 5.5kw Chinese Becker pump |
Tool Magazine | ISO-30 8-slot linear plastic steel tool magazine with tool setting blocks |
Software | Router-8 |
Transmission | Precision helical rack and pinion drive & Z axis direct drive |
Ball Screw | Taiwan PMI |
Guide Rail | Taiwan AMT |
Table Size | 1500x3000mm |
Max. Traveling Size (X/Y/Z) | 1600x3100x200mm |
Max. Workpiece Height | 150mm |
Package | plywood box |
Net Weight | 2500kg |
Upgrade: Positioning air cylinder Boring aggregate Pushing device Protection enclosure Laser light screen Spindle cover Full-body cover HSK-63F spindle 8-slot carousel plastic steel tool magazine Movable vacuum suction chucks +/-90°spindle horizontal processing design OSAI controller 12KW air cooling spindle Aluminum alloy tool magazine Loading & unloading roller table floating table
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.
