Yk-1800 Electric Mill Roll Stand for Cardbord From Yike Group

Product Description

YK-1800 Electric Mill Roll Stand For Cardbord From Yike Group
Technical parameters:
1,Backstands action mode:mechanical electric operation
2,the range of paper jams:maximum:1400mm minimum:600mm
3,the diameter of paper jams:maximum:¢1400mm minimum:¢400mm
4,Unilateral maximum load:maximum2000Kg
Structural features
★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.
Mainly purchased parts, raw materials and origin

Name of main parts	Brands or place of origin	material
motor	Hebei Hengshui
reducer	Shandong Dezhou Jin bu huan
contacts	Chint or De li xi
chuck	Xusheng	3 inches, 4 inches shared
wallboard	Production own	HT200

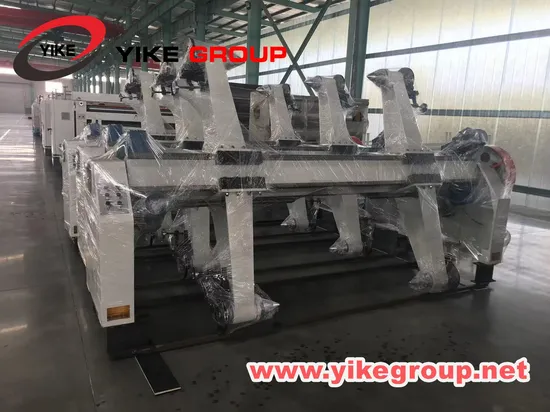

Product show
