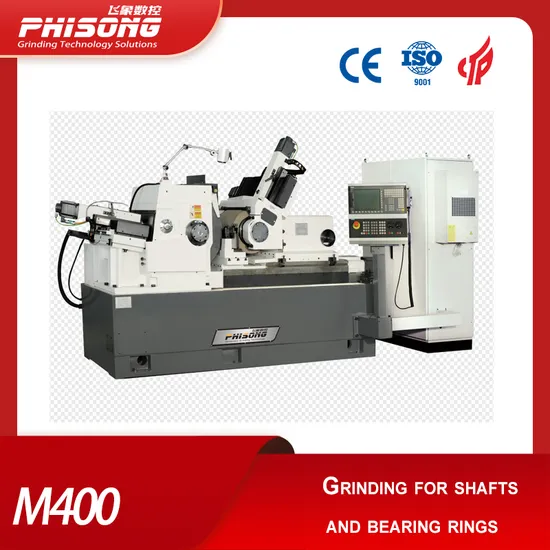

Centerless Grinding Machine Wide Wheel 400ml Grinder for Long Bars, Bearings

Product Description

Product Description
1.1Machine Body Casting, natural aging and artificial heat treatment for reasonable deformation and better durability

1.2 GW and RW(Regulating wheel)
GW is 600mm in diameter, 400mm wheel width.
GW fixed on machine bed, double supported structure , with better reliability and stability.
RW and GW spindle double supported structure, double row cylindrical roller bearings, rotary accuracy assured.
1.3 Feeding Schneberg brand high rigidity linear guide-rail for motion sensitivity, easy micron feed, vibration resistance, and
anti-fraying
Servo motor drives ball-screw through shaft coupling, min. feeding amount 0.001mm.
1.4 Dressing for GW and RW GW dresser: Servo motors drive ball-screws for GW dresser feeding and reciprocating.
RW dresser: Gear motor drives ball screw for reciprocating motion, step-less speed adjusting, hand wheel for dresser feeding
1.5.Electric
Converter for RW motor, step-less speed adjusting.
Operation panel with dials and touch screen for
grinding, dressing,feding, etc. Adjusting.
Mitsubishi PLC control system, Siemens for optional

1.6. Technical Data

		3 Axes
In-feed Grinding	Dia.	10-200mm
	Length	390mm
Through grinding	Dia.	10-200mm
GW SPEC. (O.D.*width*I.D.)		600*400*305mm
RW SPEC.(O.D.*width*I.D.)		350*400*203mm
GW Speed		1100r/min
RW Speed (stepless)		10-300r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	-1°~ +3°
GW min feeding amount		0.001mm
GW dresser min feeding amount		0.001mm
Height from center line of GW & RW to work rest		200mm
Cooling water flow		200L/min
GW Motor		30kw
RW Motor		3kw
Power Supply		3N 50HZ 380V
Dimension(L*W*H)		3300*1780*1900mm
Machine Weight		About 0.9 tons
Accuracy (standard bars)	Roundness	0.001mm
	Cylindricity	0.0018mm
	Roughness	Ra.0.16μm

1.7.Main Accessories

Name	SPEC.	QTY	Unit	Brand
Control system PLC	Q series	1	set	Mitsubishi
Servo motor		3	set	Mitsubishi
Operation display screen	10'	1	set	Mitsubishi
Ball screw		4	sets	Nanjing
Converter for RW		1	pc	Mitsubishi
RW motor		1	pc	Wannan
GW motor		1	pc	ABB
low-voltage apparatus		1	set	Schneider
Proximity switch		1	set	AUTONICS

Grinding Examples&Operations
Automatic Solution
Company Profile
