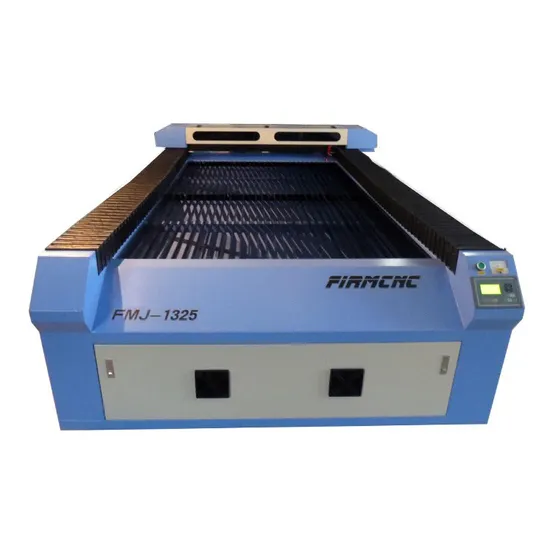

Factory Price 1325 CO2 Laser Engraving Cutting Machine for Acrylic Wood Metal

Product Description

Factory Price 1325 CO2 Laser Engraving Cutting Machine for Acrylic Wood Metal
Product Description
Working video on YOUTUBE for your reference
https://youtu.be/VU1O27-FxSs
FMJ1390 laser machine engraving cutting on acrylic
https://youtu.be/JDoLnJ2dci4
Laser machine with rotary device engrave on glass bottle
https://youtu.be/kQtXMxTDMOE
FIRMCNC Brand laser engraver cutter machine is based on various types of customer requirements, combined with our many years of equipment production experience, the use of a variety of advanced technology and special design, to achieve the perfect unity of the two functions of sculpture and cutting.
The co2 laser engraving cutting machine runs fast with simple operation and low cost; Theengraving effect is good, no burr on the cutting edge, no secondary grinding, less cutting waste, carving depth of the best laser engraving machines can be adjusted independently and with high precision.
Techncial speiciation

Model	FMJ9060	FMJ1390	FMJ1610	FMJ1325
Working area	900*600mm	1300*900mm	1600*1000mm	2500*1300mm
Laser type	Co2 sealed laser tube
Laser power	RECI 60w/80w/90w/100w/130w/160w/180w/280w/300w
Cutting Platform	Blade table (Optional : Honeycomb table)
Control system	RuiDa conrol sytem
Transmission Way	Shanghai Fulong Belt(Optional TBI ball screw)
Guide rails	Taiwan Hiwin linear square guide rail
Lens and Mirrors	Singapore Lens and mirrors
Cooling method	Circulating-water-cooling and protection system
Engraving Speed	0-64000mm/min
Cutting Speed	0-36000mm/min
Resetting positioning accuracy	≤±0.01mm
Minimum shaping charctor	Chinese Character: 2.0mm×2.0mm, English Letter: 1.0mm×1.0mm.
Supported graphic format	BMP, PLT, DST, DXF, AI
Operating Temperature	5°C-45°C
Operating Humidity	5-95%(Free of Condensed Water)
Working voltage	AC220V/380V
Optional Spare parts	Industrial Chiller Rotary system Up-down table Auto focus system
Laser tube working lifetime	RECI:8000h-10000h ; 10 months warranty (Counted from the date of produced).
Auxiliary devices	Exhaust fan, smoke pipe, air pump

Main parts and samples
Main configuration
Advantages of CO2 laser cutting machine:
1. Leadshine hybrid servo motor on XY axis. It improves the precision and speed.
2. Split machine cabinet. The upper half part of the machine can enter a door with a width of 800mm.
3. Up and down distance of Z axis is 300mm
4. Combined laser beam path(you can adjust the laser according to the red dot path.)
5. The thickness of the feed material from front to back and from left to right can be up to 80mm.
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Samples:
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular
among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Packing & shipment:Other related machines
FAQ
1.Can you recommend a laser machine to me ?
Yes, In order to give you a suitable laser machine,pls tell me your working area ? processing materials ? engraving or cutting ?
if cutting, what's the max cutting thickness ? Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician
