Basic Info.
Type
Surface Grinding Machine
Processing Object
Metal, Ceramics Flat Surface
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
End Cylindrical Grinder
Certification
CE, ISO 9001, SGS
Max.Longitudinal Travel
910mm
Max.Distance From Spindle Center Totable
580mm
Magnetic Chuck Size
400X800mm
Speed of Table Longitudinal Movement
7-23
Feed of Handwheel
0.02mm/Div
Grinding Wheel Speed
1450rpm, 1750rpm
Grinding Wheel Size
350X40X127mm
Cooling Pump Motor
0.125kw
Max. Loading Capacity of Table
500kg
Transport Package
Plywood Packaging
Production Capacity
2000unit/Year
Packaging & Delivery
Package Size
2850.00cm * 2270.00cm * 2180.00cm
Package Gross Weight
3500.000kg
Product Description

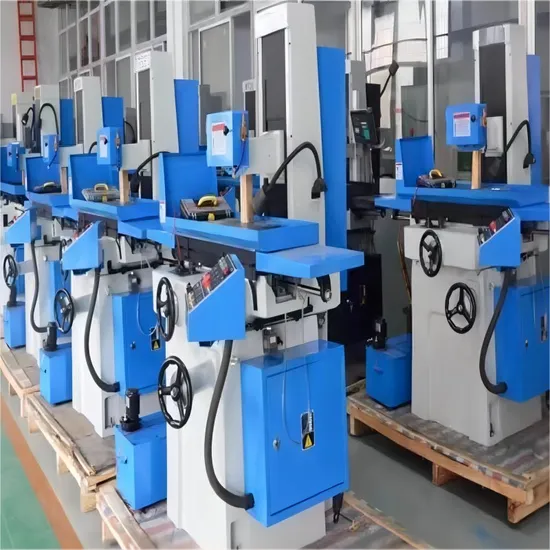

SGA4080AHR Saddle Moving Surface Grinder Machine For Metal Work
Product Description
Structural Features
--Cross board layout
--High precision sliding screw
--High strength cast iron foundation
The machine adopts the cross plate layout, and the transverse guide rail is attached with teflon foft belt. Closed hydraulic system is adopted for the movement of the worktable. The forward and backward feed can be manually fed or the screw can be driven by the motor to automatically feed intermittently. The downward movement of the grinding head can be achieved by using the lifting motor for quick lifting(AHR) or the servo motor for quick lifting and automatic feeding(AHD), which can also be accomplished manually. The machine adopts precise angular contact rolling bearing, high rigid sleeve structure, the overall quality of the machine is stable, smooth operation.
Product Parameters
Description
| Unit
| SGA-3063AH
| SGA-4080AH
|
SGA-3063AHR
| SGA-4080AHR
|
SGA-3063AHD
| SGA-4080AHD
|
Table size (w*L)
| mm
| 305x635
| 406x813
|
Max.longitudinal travel
| mm
| 765
| 910
|
Cross travel
| mm
| 340
| 450
|
Max.distance from spindle center to table
| mm
| 580
| 580
|
Magnetic chuck size
| mm
| 300x600
| 400x800
|
Speed of table longitudinal movement
| m/min
| 7-23
| 7-23
|
Table transverse movement
| Auto feed
| mm/min
| 0.1-8
| 0.1-8
|
Rapid speed
| mm/min
| 990
| 990
|
Feed of handwheel
| mm/div.
| 0.02
| 0.02
|
Wheelhead vertical movement
| Auto feed
| mm/stroke
| 0.005/.001/0.02/0.03/0.04/0.05(only for AHD model)
|
Rapid speed
| mm/min
| 460 (only for AHR/AHD model)
|
Feed of handwheel
| mm/div.
| 0.005
|
Grinding wheel
| Speed
| rpm
| 1450(50hz); 1750(60hz)
| 1450(50hz); 1750(60hz)
|
Size (OD*W*ID)
| mm
| 350x40x127
| 350x40x127
|
Spindle Motor
| kw
| 5.5
| 5.5
|
Hydralic motor
| kw
| 2.2
| 2.2
|
Cooling pump motor
| kw
| 0.125
| 0.125
|
Elevating motor
| kw
| -------(AH mode) 0.25(AHR mode) 0.5 (AHD mode, servo motor)
|
Cross feed motor
| kw
| 0.04
| 0.04
|
Max.loading capacity of table (include magnetic chuck)
| kg
| 270
| 500
|
Total rated power
| kw
| 9
| 9
|
Height of machine
| mm
| 1890
| 1890
|
Floor space (L*W)
| mm
| 2900x2200
| 3600x2400
|
Gross weight
| kg
| 2600
| 3500
|
Package dimension (LxWxH)
| mm
| 2350x2220x2150
| 2850x2270x2180
|
