1/2 Inch Concealed Fire Sprinkler

1/2 Inch Concealed Fire Sprinkler

US$0.27-1.20 1 Piece (MOQ)

Basic Info.

Model NO.
1/2"
Automatically Opened and Closed Repeatedly
Can′t Automatically Opened and Closed
Closed Fire Sprinkler System
Wet Fire Sprinkler System
Wet Alarm Valve Structure
Seat Type
Nozzle Flow Coefficient
80L/Min or 115L/Min
Name
Fire Sprinkler
Norminal Diameter(mm)
DN15/DN20
Thread Standard
NPT/BSPT
Material
Brass/Zinc
Surface Finish
Chrome/Natural Brass/White
Temperature Rating
57/68/79/93/141/182 Degree
Response
Standard/Quick
K-Factor
5.6(80)/8.0(115)
Working Pressure
1.2MPa/175psig
Transport Package
Standard Export Package
Specification
1/2 Inch or 3/4 Inch
Trademark
SINCO/OEM
Origin
Quanzhou, Fujian
HS Code
8424
Production Capacity
150000pieces/Month

Product Description

1/2 inch concealed fire sprinkler
Introduction:
Fire sprinkler is an important part of wet-type auto spraying system. It is usually installed inside the building and structures with light fire danger, medium fire danger and heavy fire danger, such as workshop, warehouse, hotel, shop, recreational place, hospital, cinema, office building and garage.
The sprinkler is composed of sprinkler frame, sealant and glass bulb. It is to be installed in the protective district via ductwork, acting as a fire detector and auto sprayer. In case of fire inside the protective district, the atmosphere temperature rises up and the liquid inside the glass bulb expands after being heated and explodes after reaching the operating temperature of the glass ball. The sealant drops and the sprinkler sprays to the protective district for fire extinguishments subject to the preset shape of spraying.
Technical parameters:
Type Upright / Pendent /Sidewall/Conventional/Concealed
Material Brass/Zinc
Surface finish Natural brass or Chrom Plated or White Color Coated
Thread diameter 1/2" NPT/BSPT (DN15) 3/4" NPT/BSPT (DN20)
Flow characteristic coefficient 80L/min(K=5.6) 115L/min(K=8.0)
Glass bulb diameter 5mm(Standard Response) or 3mm(Quick Response)
Certificates ISO,CCC,UL
Max working pressure 1.2Mpa (175Psig/12 Bar)
Factory Hydrostatic Test 100%, 3.0Mpa

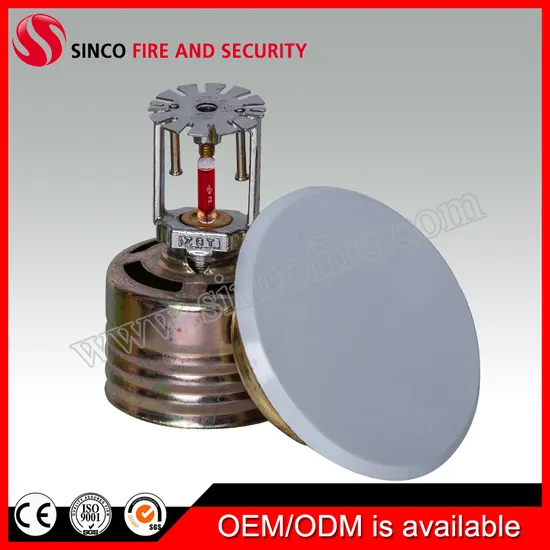

Fire sprinkler photoes:
Our Company
We could supply fire hose, fire hose fittings, spray nozzle, coupling, automatic fire sprinkler system products, gate valves, check valves, ball valves, etc. All these products strictly confirming to JIS, API ans BS standards. All of our products comply with international quality standards and are greatly appreciate in avariety of markets around world. Our factory is covering an area of 15900 square meters, we now over 300 workers. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarteen total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a globe sales network reaching the North America, South America, Mideast, Southeast Asia, East Europe, etc.
Certificate
Workshop
Other Fire Fighting Equipment
FAQ
1. Could you supply the samples?
Free samples always ready if the value is within our purview.
2. Do you have the MOQ?
For conventional products, Low MOQ.
3. Can you add some logo on the products?
Yes. We could OEM and design your logo.
4. Are you able to design or explore a new products for us?
Yes, we are able to, if the clients could supply the drawings or samples.
