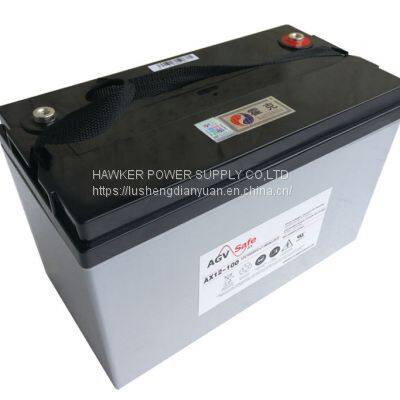

HAWKER AGV BATTERY AX12-100 12V100Ah

Product Details

Product Description

Product Description
HAWKER POWER SUPPLY CO,LTD
Authorized service provider
Wang Zelong 182 1045 0914
Inquiry email: hawker_china@163.com
Export business: Liu Hui 150 1023 4813 liuhui@detadryflex.com.cn
Wang Zelong focuses on AGV power mobile power supply and energy storage power supply solutions! For more specific parameters and specifications of Hawke battery products, please contact Wang Zelong!
Hawke AGV battery
Mobile machines, including various mobile intelligent robots and AGV cars, are powered by batteries. In order to ensure that the mobile machinery can work continuously, stably, safely and reliably, it is very important to reasonably configure the power supply and select the battery with high efficiency and low cost.
Hoke power supply Co., Ltd. is an advanced power supply manufacturer. To meet the requirements of emerging applications, with its advanced manufacturing equipment and technology, the latest patented technology and materials, it is specially designed for mobile mechanical power adsorption (AGM) ax series maintenance free lead-acid sealed batteries. This series of batteries are produced in strict accordance with the battery standard, which not only strengthens the deep cycle discharge and fast charging capacity, but also improves the safety and reliability of use, and has no damage and pollution to equipment and environment.
Contact Wang Zelong for details.
Follow the standard
● product design complies with International Standard IEC 60896 / 21-22
● according to eurobat guidelines issued in 1999, this series of products belong to the category of "long life"
● comply with Telcordia sr-4228
● UL certification (UL standard 1989)
● approved as non hazardous materials suitable for land, sea and air transportation according to dot regulation 49 of the United States and ICAO ICAO and IATA packaging directive 806
● manufactured in the factory of Hoke power supply Co., Ltd. certified by ISO 9001:2000 and ISO 14001:2004
Specifications and technical specifications

type Range		AGM (adsorption) ax series
		AX12-18	AX12-26	AX12-33	AX12-45	AX12-60	AX12-75	AX12-100	AX12-120	AX12-150	AX12-180	AX12-200
		12V
		18AH	26AH	33AH	45Ah	60Ah	75Ah	100Ah	120AH	150AH	180AH	200AH
		10.0	8.0	9.0	7.0	6.5	6.0	5.0	4.5	4.0	4.0	3.8
		181	166	195	198	260	260	308	408	485	530	522
		77	175	130	166	170	170	170	177	170	210	240
		168	125	180	170	185	235	215	225	240	215	225
kg		5.9	9.0	10.2	14.6	20.2	23.5	30	36.5	47.0	53.0	63.0
（A）		900	900	1150	1250	1450	1750	2300	2420	2950	3350	3750
(A)		180	260	330	450	600	765	1025	1200	1510	1850	2100
(A)		3.6	5.2	6.6	9	12	15	20	24	30	36	40
-10℃～40℃ 20℃～25℃
		M5	M5	M6	M6	M6	M6	M8	M8	M8	M8	M8
