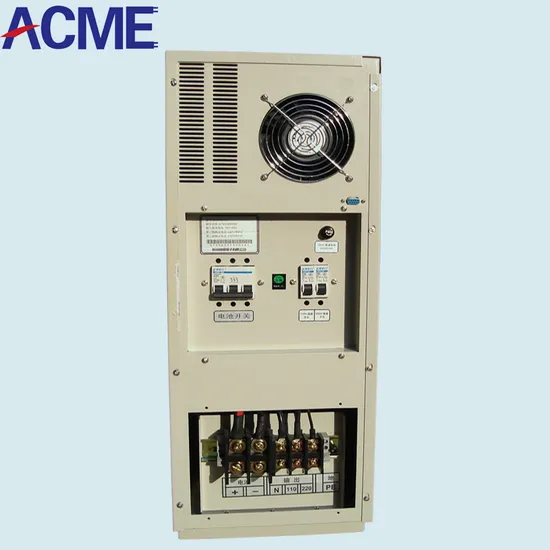

8kVA-40kVA Three Phase Online UPS
| US$5,200.00-5,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ACMEUS33-40KVA
Protection
Short Circuit
Application
Industry
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Medium Type
Equipment Mode
Centralized Model
Brand
Acme
Input
220V/380V
Control Way
IGBT PWM
Waveform
Sine Wave
The
3%
Voltage Stability
2%
Temporary Change
4%
Overload
150%
CF
3:1
Load PF
0.8 Lag
Batteries No.
4/8/10/16
Battery
Lead-Acid Maintenance Free Battery
Alarm
Three Segments
Transport Package
Wood Packing
Specification
8KVA-40KVA
Trademark
ACME
Origin
Jinan
HS Code
8504402000
Production Capacity
300PCS/Month
Product Description
Product introductionProduct introduction
ACMEUS series UPS for all types of computer and accurate electronic equipment needs, with professional quality, excellent performance and ease of operation as the goal. It maintains the advantages of traditional online machine, improves the protection circuit, IGBT drive proprietary technology, high-frequency intelligent charging, digital management, etc., greatly improves the application level of the frequency online machine technology.
This series of UPS can be used in personal computers, post and telecommunications, banking systems, railway transportation, electricity, scientific research and so on.
Technical features
1. Online UPS, pure string wave output, The application of dual-transformation SPWM technology, durable;
2. Liquid crystal display panel, through the LCD to switch, easy to check the working status of UPS;
3. High-power high-quality intelligent charging, charging current up to 10A, to meet the long-term power supply system charging requirements;
4. Special static switch design, power grid failure output zero interruption, bypass output time of 2ms;
5. IGBT drive proprietary technology, output short-circuit protection to ensure that not damaged by short-circuit load;
6. Built-in isolation transformer, strong load capacity, load adaptability, safe and reliable;
7. RS232 communication interface, providing remote monitoring function.
Technical parameters
| Model | ACMEUS33-___K | |
| Rating capacity | 8KVA-40KVA | |
| Input | Phase/Wire | 3 PH 4W+G |
| Voltage | 220, 380V±20% | |
| Frequency | 50/60Hz±5% | |
| Control way | IGBT PWM pulse width modulation | |
Output | Waveform | Sine wave, THD 3% |
| Voltage stability | 220, 380V±3% | |
| Frequency | 50Hz,60Hz±0.5% | |
| Temporary change | 100% load change, ±2% | |
| Overload capability | 120% rated current,automatically switch to bypass (BYPASS) after 5 seconds 150% rated current,automatically switches to bypass after 10 cycles(BYPASS) | |
| CF | 3:1 | |
| Load PF | 0.8 Lag | |
| Power failure conversion time (MS) | 0 | |
| Static switching time (ms) | 0 | |
| Batteries No. | 16/30 | |
Battery | Type | Lead-acid maintenance-free battery |
| Power time | Standard 5 minutes, can be up to 8 hours (full load) | |
| Charge time | 90% charge in 7-10 hours | |
| Efficiency(full load) | >65%/>80%/>86% | |
| Noise | 50dc/55db/60db | |
| Protection | Overload limit current output, Overload/short-circuit protection, burst voltage protection (220V UPS-470V, 110V UPS-240V) Off-alert suppression capacity up to FCCA level | |
| Light | The mainpower is OK (green light) The converter is OK (green light) Bypass output (yellow light) Battery low Voltage (red light) Overload (red light) Fault (red light) | |
| Alarm | Three segments Every 4 seconds after the power outage The battery will be exhausted, every second to tweet Continuous lying in the event of a fault or battery exhaustion | |
| Computer Interface | 9PinD Type connector(Option) | |
| Ambient temperature humidity | 0~40ºC Up to 95% without condensation | |
| Size(mm) | 450×980×550/580×1180×490/560×1200×720 | |
| Weight(KG) | 128-510KG | |
| Input device | Terminal row | |
