Export to Japan 10L16L 20L 25L 30L 50L 60L Agricultural Spraying Uav Drone

Product Description

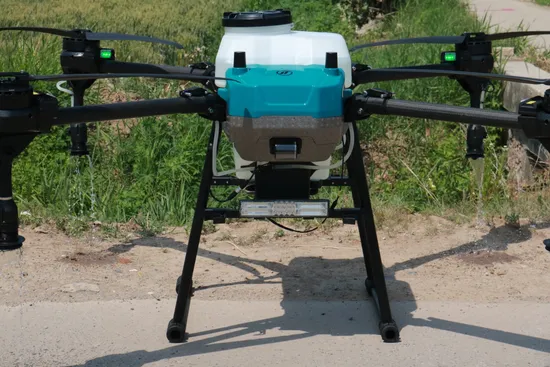

Detailed Photos
Universal agricultural drone flight control.Widely used and stable performance

Universal remote control It adopts Qualcomm processor, equipped with Android embedded system, supports SIM, digital camera, serial port, S.bus and other interfaces.
Charge plug:AS150 Volt:44.4V 25C Size:117*174*238mm Weight:6400g
Product Parameters

Specification Parameters
Aircraft Parameters
Structural layout					Four-axis layout
Maximum wheelbase					2200mm (four axes)
Overall dimensions(LxWxH)					1725*1755*1075mm (In working state)
Pesticide container capacity					50L
Seed container capacity					70L
Drone net weight					55KG
Rated .take off weight					105KG
Max .take off weight					<150KG
Battery weight					13.3KG
Power battery					30000mAh 2.1Kwh 68.4V
Charging Duration					Lithium battery 20%-95% about 13min
Type of spraying nozzle					Centrifugal Nozzles
Max. Flow rate					12 L/min(With 1 pump);24 L/min(With 2 pumps)
Spraying width					8-10 m
Number of Nozzles					2/4
Charger
Output power of charger					220V/380V 8000W (Direct connection with generator) 2200W (Direct connection with mains)
Power					Dual output channel 8000W (Direct connection with generator) 2200W (Direct connection with mains)
Oil tank capacity					38L
Reference fuel consumption					500ml/kWh
Hovering Accuracy					RTK: Horizontal ±10cm, vertical ±10cm Radar: ± 0.1m
Hovering Under Spraying And Full Load					7.5 min
No-load hovering time					19 min
Max. Operation Efficiency					22ha/h
Ranging accuracy of ground simulating radar					0.1m
Fixed height range					1-30m
Obstacle avoidance perception range					0.5-25m
FOV					Vertical ±9°, horizontal 80°
Motor rated power					3500w*4pcs
Remote control signal distance					≤2000m
Flight height limit					≤30m
Flight speed limit					≤12m/s
FPV camera					Front camera

customer photos

Our Advantages


Company Profile
Jitian lntelligent focuses on the intelligent agriculture, and is committed to the research & developthe agricultural drones, the automatic driving systems of agricultural machinery, and the intelligentagricultural systems. Xuzhou Jitian lntelligent Equipment Co., Ltd., headquartered in Xuzhou, JiangsuProvince, has more than 400 employees, including more than 190 R&D talents, accounting for about47% of the total number of employees. At the same time, it has in-depth and extensive scientific research and technical cooperation with Harbin Institute of
Technology.Jitian products cover more than 30 countries around the world, radiate 28,000+ overseas enterprises.manage 10W+ sets of agricultural machinery equipment, and have a total detection area of 450 millionmu (74 milion acres).Agricultural machinery intelligent detection terminals have a market share ofmore than 70% in China.After years of efforts, Jitian lntelligent has continuously expanded its servicearea and qradually has the ability to provide agricultural information services covering the whole China.
