9FQ Hammer Mill (HM) for Corn and Other Grains
| US$1,000.00-4,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
9FQ
English Mannual
Yes
Warranty Time
1 Year Except Spare Parts
Delivery Time
Within 15 Days After Receive Deposit
Model
4 Models Avaliable
Type
Hammer Crusher
Drive
Electric
Crushing Degree
Ultra-Fine Mill
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
Hard Alloy
Finished Surface
Cut Off Tool
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Universal Tongs
Object
Corn and Other Grains
Warranty
1 year
After-sales Service
online
Transport Package
Wooden Box
Specification
CE, SGS
Trademark
VIC
Origin
China
Production Capacity
6000PCS Per Year
Packaging & Delivery
Package Size
100.00cm * 60.00cm * 75.00cm
Package Gross Weight
250.000kg
Product Description

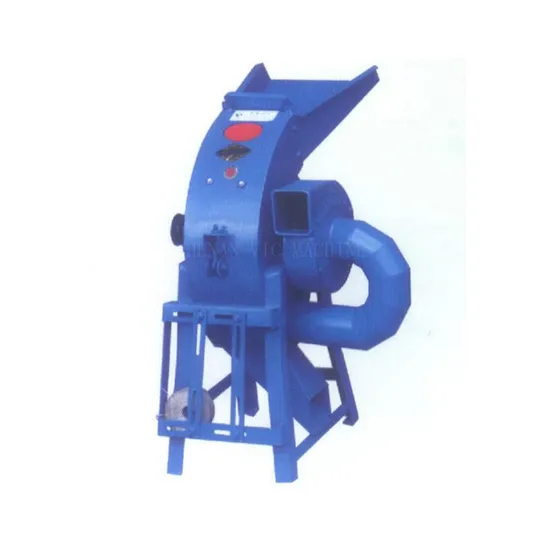

9FQ hammer mill Product Description 1.Introduction:
9FQ hammer mill is a small crush machine; The knife can cut and crush the raw material with 1mm diameter. For the communication of wood chips, stick and straw, stalk into the pieces according to the requirement. It is also suitable for grinding the grains, such as corn, wheat, and straw, etc. Also for wood, paring, etc with different hammer.
The machine could be derived by the diesel engine, motor, tractor, etc.
This kind of machine could be matched with mounting plate for motor or diesel engine, and collector. 2. Introduction:
2.1) The hammer mill can cut wood chips,rice hull,shells, stick and all kinds of straw, stalk into 1mm diameter sawdust. It is also suitable for grinding the grains, such as corn, wheat with different hammers.
2.2) This machine can be driven by motor or diesel engine.
3. More photos
Spare parts:
3.1) Sieve
3.2) Hammer
4. Main Data :
4.1) hammer mill driven by motor
| Model | Motor (kw) | Capacity (kg/h) | Weight (kg) | Package size(mm) |
| 9FQ320 | 5.5 | 300-350 | 250 | 1000*600*750 |
| 9FQ400 | 7.5 | 400-500 | 300 | 1100*650*800 |
| 9FQ500-28 | 11 | 600-800 | 350 | 1180*780*1130 |
| 9FQ500-40 | 22 | 900-1000 | 600 | 1152*590*1090 |
| Model | Diesel engine(Hp) | Capacity (kg/h) | Weight for Mill (kg) |
| 9FQ-32 | 15Hp | 200-300 | 135 |
| 9FQ-40 | 15Hp | 300-400 | 180 |
| 9FQ50-28 | 15Hp | 500-800 | 200 |
| 9FQ50-40 | 30Hp | 800-1000 | 230 |
