High Quality Automatic Air-jet Sample Loom China Supplier

Product Description

Product Description
Product Description

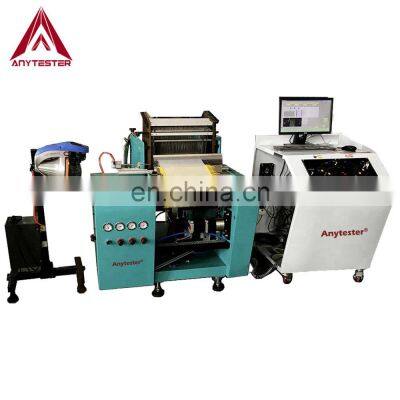

AT247 Automatic Air-jet Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, air-jet weft insertion, mechanical let-off, mechanical beating-up and mechanical take-up. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Details & Features
1. Consists of control part (computerized control platform) and mechanical part (loom);2. Air jet weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;3. Mechanical let-off, beating-up and take-up and pneumatic shedding;4. Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;5. Heald frames up to 20pcs, easy to mount and dismount;6. Professional software for designing or editing patterns;
Specification

Model	AT248
Reed width	(16, 20 and 24 inch, optional)
Yarn linear density range	5~500tex
Weft density	30~45weft/min, selectable
No. of heald frame	4~20
Color selection	1 color
Let-off	Active electronic control
Take-up	Motor control
Shedding	Dobby shedding, pneumatic control
Beating-up	Motor control
Air pressure	0.45~0.8Mpa
Air consumption	Max. 500L/min
Power	A220V 50Hz, single-phase AC380V 50Hz, three-phase

Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
