Product Description

Product Description

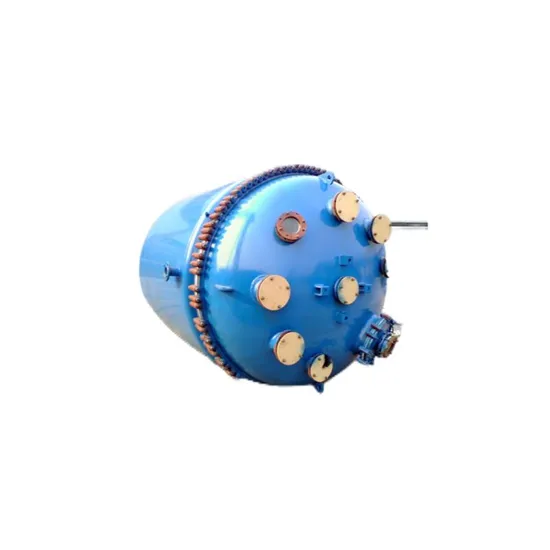

Closed glass-lined reactor is a composite material product made of high-silicon glass-lined glaze sprayed on the surface of a steel container, which is reasonably and adheres to the metal surface through a high-temperature combustion process. The tank cover glass-lined reactor is a point. It has the dual advantages of glass stability and metal strength. It is an excellent corrosion-resistant chemical equipment. It has the properties of corrosion resistance, impact resistance, smooth appearance, insulation, heat resistance, and wear resistance. Because the tank cover and the tank body are a complete closed whole and cannot be separated, the closed enamel reactor is suitable for environments with high pressure inside the reactor, which can avoid or reduce leakage; at the same time, due to the limitation of the installation size, the stirring paddle in the closed enamel reactor is not as large as the stirring paddle in the open reactor. Like the open glass-lined reactor, the closed glass-lined reactor is widely used in chemical, petroleum, food, dye and other industrial processes. It is hydrolysis, neutralization, crystallization, mixing, emulsification. Product advantage
The corrosion resistance of the glass-lined reactor: It can withstand most inorganic acids, organic acids, organic solvents and weak alkalis, especially in hydrochloric acid, nitric acid, aqua regia and other media.
The non-stickiness of the glass-lined reactor: The smooth glass surface is non-sticky to the medium and easy to clean.
The insulation of the glass-lined reactor: It is suitable for occasions where the medium is prone to static electricity during the production process.
The isolation of the glass-lined reactor: The glass layer isolates the medium from the metal, making it difficult for iron ions to dissolve into the medium.
The freshness of the glass-lined reactor: The glass layer has excellent freshness preservation properties for the medium. Technical parameter

Model		TF3000	TF5000	TF6300	TF8000	TF10000	TF12500	TF16000	TTF20000	TF30000
Nominal Capacity(L)		3000	5000	6300	8000	10000	12500	16000	20000	30000
Actual Capacity(L)		3100	5050	6866	9060	11670	13651	17446	21790	33500
HeatExchange Area(M2)		8.61	13.16	16.10	18.38	21.35	24.89	29.48	34.04	45.36
Dimension (mm)	D1	1600	1750	1750	2000	2200	2400	2400	2600	3000
	D2	1750	1900	1900	2200	2400	2400	2600	2800	3200
	D3	1964	2152	2152	2507	2708	2708	2912	-	-
	D4	-	-	-	-	-	-	-	2000	2300
	H1	195	195	195	210	210	210	210	210	210
	H2	2215	2860	3244	3310	3533	4053	4346	4641	5340
	H3	1050	1200	1200	1200	1300	1300	1400	-	-
	H4	1326	1326	1475	1542	1880	1880	1880	1880	2200
	H	3850	4500	5020	5220	5780	6300	6590	6890	7900
	H0	-	-	-	-	-	-	-	7326	8500
Transmission model		BLD-3	BLD-3	BLD-4	BLD-4	BLD-5	BLD-5	BLD-6	BLD-6	BLD-7
stirring speed r/min	padde Type	130	130	130	130	130	130	130	130	130
	Turbine Type	130	130	130	130	130	130	130	130	130
Glass-lined nozzle	a	300x400	300x400	300x400	300x400	300x400	300x400	300x400	450	450
	q	125	125	125	200	200	200	200	250	250
	C	100	125	125	200	200	200	200	200	200
	d	100	125	125	150	150	150	150	150	150
	e	125/light	125/light	125/light	125/light	125/light	125/light	125/light	125/light	125/light
	f	125	150	150	150	150	150	150	150	150
	9	100	125	125	150	150	150	150	150	150
	h	125	150	150	150	150	150	150	150	150
	K	-	-	-	-	200	200	200	200	200
	M	-	-	-	125	125	125	125	125	125
	Outlet	125	125	125	125	150	150	150	150	150
Jacket nozzle	inlet (outlet)	3-65	3-65	3-65	3-65	4-80	4-80	4-100	4-100	4-100
	Agtator Nozzle	2-65	3-65	3-65	3-65	3-80	3-80	3-100	3-100	3-100
Reterence Weight(Kg)		3500	4950	5400	7600	8800	10300	13800	14700	22200
