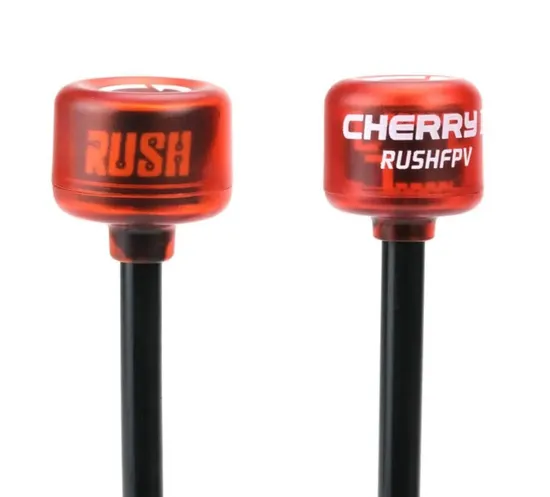

Cherry 5.8g 1.2dB Clear Red Fpv Antenna for Fpv Racing Freestyle Fatshark Immersion RC Rapidfire Vtx

Product Description

CHERRY 5.8G 1.2DB Clear Red FPV Antenna for FPV Racing Freestyle Fatshark Immersion RC RapidFire VTX
Product Description
Features * Cherry antennas from RushFPV are optimized for racing FPV drones
* Maximum signal coverage. The 5.6-6 GHz bandwidth covers the entire frequency band, and all channels have almost the same transmission power.
* Ideal axial ratio of circular polarization.
* Effectively suppresses screen flicker caused by multi-beam interference.
* Small and strong.
* Optimized design obtained by massive impact tests.
* The flexible pipe can withstand angular bends and shocks to avoid damaging the cable.
* Between 5650 and 5950 MHz VSWR is below 1.2, which means transmission efficiency up to 98%. It can also help reduce VTX heating.
* Quick installation. Antenna clamps have the same size as standard SMA flange connectors. The length of the antenna tube can be shortened according to your needs.
* Quality guarantee. Cherry antennas are tuned to the performance of a professional microwave laboratory Rush FPV, and each antenna is checked by a network analyzer before sending from the factory.
Specification * Gain: 1.2dBi
* S11 SWR: 1.4 max - 1.1 min
* Band Width: 5600-6000-MHz
* Axial Ratio: Around 1.0
* Polarization: LHCP or RHCP
* Connector: SMA
* Length (end of SMA to base of Antenna): 14CM Technical Details

Product Dimensions	2.5 x 2.5 x 9 cm; 25 Grams
Manufacturer recommended age	10 months and up
Item model number	1093
Batteries Required?	No
Batteries Included?	No
Number of channels	2

About this item * Updated Version:
RUSH CHERRY Lollipop V3 5.8GHz center frequency and 5600-8000MHz bandwidth range, RUSH CHERRY FPV Antenn have exquisite workmanship, best in class range and signal quality.
* IRoot reinfircement design:
RUSH CHERRY antenna can be bent at any angle maintain,360°protection low feeder loss, easy to install.
* Imported PC+ABS Material:
RUSH CHERRY RHCP antenna for 5.8GHz FPV racing,can withstand high strength impact,support you better range and performance in any orientation.
* Longer Transmission Range:
Exquisive workmanship, manufactured and tested to highest standards.Best in class range and signal quality.
* Mini size & light weight:
73mm height/ 16mm Diameter,7.5g / pc. FAQ Q1.Are you factory or trade company?
A1:We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q2.Could you offer OEM&ODM service?
A2:Yes,we are able to provide OEM&ODM service. The number of customization starts at 5.
Q3.Do you guarantee the quality of products?
A3:We offer 10 years warranty service and introduced complete quality management system as well as rigorous technical standards.
Q4.How long is the production cycle?
A4:Sample order is 4-5days. Bulk orders take 9-10 days.
Q5.What shipping ways do you have?
A5:We could ship the goods by DHL, UPS, Fedex, Air Mail.
Q6.Whats is the payment terms?
A6:T/T, Ablibaba trade assurance.
