Construction Machinery Diesel Cement Mixer

Product Description

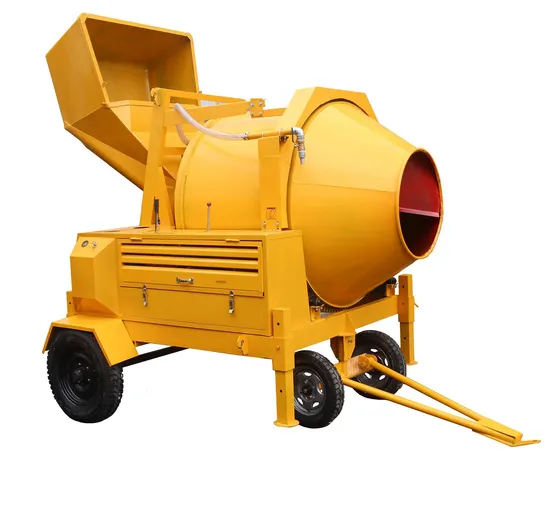

Concrete Mixer - Self-Dumping Mixer Introducing the Concrete Mixer - Self-Dumping Mixer, a reliable and versatile solution for your construction needs. With its middle capacity and heavy-duty channel chassis, this mixer provides durability and strong support where it matters most. The jack legs ensure maximum stability throughout the mixing cycle, while the towable chassis with pneumatic tyred wheels allows for easy transportation between sites.
The Concrete Mixer features a hydraulic tipping hopper, with the option of a steel wire rope hoisting tipping hopper. Powered by a diesel engine, it can be used in areas without electricity supply, making it suitable for a wide range of construction projects.
Key Features:
Water pump for water circulation, maintaining stable engine water temperature Air sucking point moved to the front, reducing dust intake and extending engine service life Compact structure for higher reliability Big capacity for even concrete mixing Easy operation and portability between sites Specifications:
Self-falling type mixer with a capacity of 0.50 cubic meter Suitable for mixing plastic and low-slump concrete Aggregate size required to be smaller than 60 mm Revolving drum for mixing and discharging Whether you're working on building sites, road and bridge projects, or any other construction site, the Concrete Mixer - Self-Dumping Mixer from Shandong Ucarry Machinery Co., Ltd. is the reliable choice. For more information, please contact us.

Model	JZR350
Capacity of discharging	350L
Capacity of loading	560L
Drum rotating speed	14.5r.p.m
Power source	Diesel
Powered	13.34kw
Tyre size	7.00*16
Hydraulic system	Pressure of system	120Mpa
	Control valve	3 Stone manual valve
	Working pressure	80Mpa
Hydraulic cylinder	Hydraulic cylinder piston diameter	50mm
	Hydraulic cylinder diameter	90mm
	Stroke of hydraulic cylinder	720mm
Gear case	Mechanical gear box with friction clutch
Overall size	3100×2300×2500mm
Weight	1950kg
Mechanic transmission with hydraulic tipping system

Diesel Power Our diesel concrete mixer, powered by a reliable diesel engine, is the perfect solution for areas without electricity. Whether you're working on a concrete batching plant or a construction site, this versatile construction equipment is designed to meet all your needs.
With a 1-year warranty and online customer support, our diesel concrete mixer, manufactured by Shandong Ucarry Machinery Co., Ltd., offers peace of mind and reliability for all your construction projects.
Tipping Hopper The hydraulic tipping hopper from Shandong Ucarry Machinery Co., Ltd. is a reliable and efficient solution for aggregate feeding. It can be used with our diesel concrete mixer, construction equipment, and concrete batching plant. With a 1-year warranty and online after-sales service, this concrete mixer is a top choice for any construction project.
Water Pump
Introducing a water pump to ensure stable water temperature by facilitating water circulation between the water tank and water radiator.
Gear Ring By observing the oil pressure gauge, you can determine if there is any oil leakage or if the pressure is too high. The Gear Ring, manufactured by Shandong Ucarry Machinery Co., Ltd., ensures the normal operation of your machinery.
Operating Handle The operating handle of our product, manufactured by Shandong Ucarry Machinery Co., Ltd., has been designed with convenience and longevity in mind. By relocating the air sucking point from the back to the front, it effectively reduces the amount of dust being sucked into the engine. This not only ensures a cleaner working environment but also helps to extend the service life of the engine. With our operating handle, you can expect improved performance and durability.
