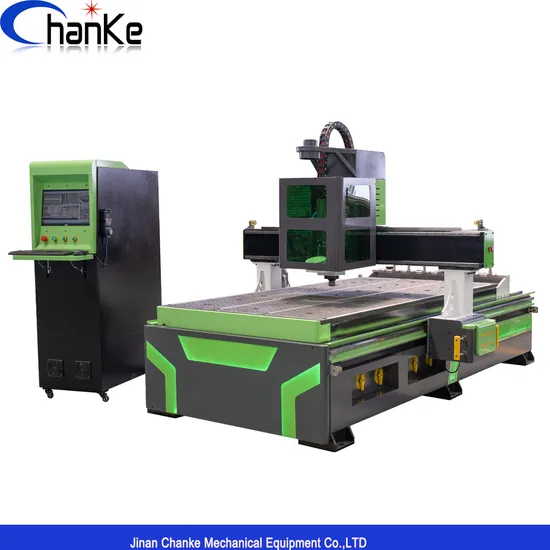

2024 3D Wood Metal Acrylic Carving Engraving Cutting Woodworking Milling CNC Router Atc Engraver Machine for Furniture Cabine Plywood Carving Machinery

2024 3D Wood Metal Acrylic Carving Engraving Cutting Woodworking Milling CNC Router Atc Engraver Machine for Furniture Cabine Plywood Carving Machinery

US$4,000.00-8,000.00 1 set (MOQ)

Basic Info.

Model NO.
CK1325
Spindle Layout
Spindle Over
Spindle Number
Single-Spindle
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO, FDA
Customized
Customized
Condition
New
Color
Customized
After-sales Service
3 Years
Working Size
1300X2500mm
Cooling Mode
Water Cooling Spindle
Spindle Power
7.5kw /9.0kw
Air Cooling Is Ok
Yes
Machine Colour
as Customers Choice, We Are White and Blue
Conrol System
DSP or Nc Studio or March3 as Your Option
Rotary
Yes:500mm /200mm 80mm
Transmission
Z Axis : Ball Screw, Xy : Gear and Rack Rail
Rail
Taiwan Hiwin Square Rail
Working Table
Vacum Pump or Materails Holders
Motor
Full Servo Motor
Transport Package
Plywood Packing
Specification
iso /SGS/FDA/CE
Trademark
chanke
Origin
China
HS Code
847989999
Production Capacity
50sets/Months

Packaging & Delivery

Package Size
319.00cm * 220.00cm * 190.00cm
Package Gross Weight
1650.000kg

Product Description

1. Tiwan 4 axis SYNTEC 11MA.
2. With 9.0 HQD air cooling spindle
3. Hiwin 25 square guide rails.
4. 11kw Telta inverter
5. Tool sensor
6. Servo motor with reduction mobile and Z axis contracting brake.
7. Vacuum and T-slot work table combine with 5.5kw vacuum pump
8. And it adopts a more advance XYZ Auto-oil-feeding system.
9. Heavy duty type machine bed and gantry for stable working.

10. 8 pacs of tools atc liner
Machine parameters
Model
chanke-1325 ATC cnc router
X, Y Working size
1300*2500mm
Z feed Height
200mm
Table Surface
Vacuum table with 8 pacs of tools changer
X, Y Structure
Rack and Pinion, Taiwan 25 Linear Square Guide Rail
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
35000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9 KW HQD air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Inovance servo motor
Working Voltage:
AC 380V /50/60Hz
Command Language
G code
Control System
SYNTEC 11MA
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%





Bellow is the other type of machine :
1.1300x2500mm with 3.5kw water cooling spindle /air cooling spindle
2.Leadshine stepper motor with leadshine driver DMA860H
3. Fuling /BEST brand inveter
4. NC studio control system
5. vacuum working table or T solt working table as your choice
6, Dust collector
7.Hiwin Rail liner
Machine parameters can decide by customer : like
spindle power can be choose : 4.5kw/5.5kw/7.5kw
Motor brand aslo can be choose .
This is one type of wood cnc router , as we know cnc router has many type , it decided by customer's work.

1 head 8 spindles wood cnc router for engraving work
we have many type of wood cnc router like cylinder engraving machine 2 head with 4 spindles . and machine with swing head with rotarty and ATC liner machine cnc .
Guarantee & service of Machine:
2 -3 years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the
warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time,
and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is
ready, we would tell you everything goes well here;
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who
could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive
there to debug and fix.
5) Could be remote control if needed.
