High Efficiency Mfi Melt Flow Indexer

High Efficiency Mfi Melt Flow Indexer

US$150.00-6,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MFI
Logo
Jj-Test
Transport Package
Wooden
Specification
ISO1133 ASTM1238
Trademark
JINJIAN
Origin
China
HS Code
90248000
Production Capacity
200

Product Description

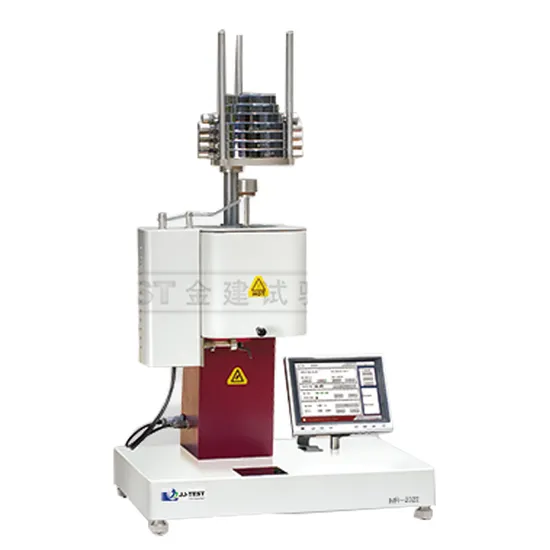

Melt Flow IndexerOverview
This type of Melt Flow Indexer is a new and affordable tabletop instrument that tests the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of a wide range of thermoplastic raw materials, in the form of granules, strips of film etc. This test method is particularly useful for quality control tests on thermoplastics. MVR will be found particularly useful when comparing materials of different filler content and when comparing filled with unfilled thermoplastics. The MFR can be determined from MVR measurements provided the melt density at the test temperature and pressure is known.
Standard ISO1133, ASTM D1238 and the equivalent.
The tester is supplied completely with the accessories and weights necessary for maintenance and operation. Nothing else to buy--just plug it in and start a test. For more sophisticated data collection, it works with JJ-TEST PC DMS software, which can store an unlimited amount of test results and generate desired test reports.
Two languages are provided: English and Chinese. MFI Software has the functions of setting parameters, constant temperature control, cutting sample, calibration, setting test time, displaying test datum & result, calculating melt density, as well as checking & printing test datum.
Model Chart of This Design
Model
Project
MFI-1211 MFI-1221 MFI-1312 MFI-1322 MFI-2322A MFI-2322S MFI-2322H MFI-3322
Test method Quality method Quality method,Volume method Quality method Quality method,Volume method Volume method Quality method,Volume method
Display method LCD screen Touch screen Full color touch screen
Loading method Manual loading Semi automatic loading Fully automatic loading
Temperature display resolution 0.1ºC 0.01ºC 0.1ºC
Measuring range (0.1-100)g/10min (0.1-100)g/10min
(1-150)cm³/10min
(0.1-100)g/10min (0.1-100)g/10min
(1-350)cm³/10min
(0.1-100)g/10min
(0.1-350)cm³/10min
(0.1-3000)cm³/10min (0.1-100)g/10min
(1-150)cm³/10min
Timing accuracy 0.01S 0.005S 0.01S
Displacement accuracy -- ±0.1mm -- ±0.1mm ±0.02mm ±0.1mm
