12X4.5X3.5m Mini Bus Spray Booth Paint Drying Oven Cp-12-45 for Sale
Basic Info.
Model NO.
CP-12-45
Type
Spray Booth
Certification
CCC, CE, ISO9001
Substrate
Steel
Brand
Compass
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Total Power
45kw
Transport Package
Steel Frame
Specification
12 x 4.5 x 3.5(m)
Trademark
COMPASS
Origin
China
HS Code
8419399090
Production Capacity
200 Sets / Month
Product Description

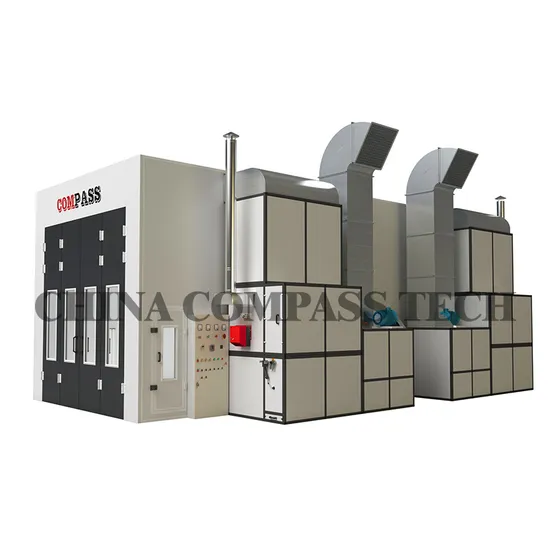

CP-12-45 Bus paint booth product details:Technical data for CP-12-45 spray booth
| Outside Dimension (mm) | 12125×6150×4100 | Inside Dimension(mm) | 12000×4500×3500 |
| Front Door(mm) | 3600×3800(W*H) | Service door(mm) | 800×2000 |
| Total Power | 45kw | ||
| Cabin system | Front door | 4 folded sheet metal formed door | |
| Wall panel | 75mm EPS sandwich panel, steel sheet thickness: 0.476mm(rockwool panel is for option) | ||
| Ceiling panel | Galvanized steel sheet | ||
| Basement | Dig two rows pit. Two rows galvanized grids. | ||
| Door glass | 5mm tempered glass | ||
| Air make-up system | Air ventilation system quantity | 2 units | |
| Air inlet fan system | 4 sets 5.5kw centrifugal fan, fan model:YDW-5.6S | ||
| Exhausted fan system | 2 sets 11kw belt drive centrifugal fan, fan model: TAE-630, with one manual damper | ||
| Air inlet capacity | 60000m3/h | ||
| Exhuasted capacity | 60000m3/h | ||
| Exhausted ducting | Four meters straight ducting and one 135 degrees elbow for each exhausted system | ||
| Purification system | Pre-filter | G3 grade | |
| Ceiling filter | 600G filter EU5 / F5 | ||
| Floor filter | Fiberglass filter | ||
| Exhausted filter | Filber glass and carbon filter | ||
| Heating system | Heat Exchanger | SUS 304 200KW stainless heating exchanger | |
| Heating burner | Two sets Riello G20 diesel oil burner(gas burner for option) | ||
| Heating productivity | 400000Kcal/hour | ||
| Spray to baking switch | Pneumatic damper | ||
| Chimney ducting | 4m straight chimney and one chimney hood for each air make-up system | ||
| heating temperature | Maximum 80ºC | ||
| fuel consumption | 8-12L/vehicle | ||
| Lighting system | Ceiling lighting | 16Units, each 4 *24W LED lamps. | |
| Side lighting | 18Units, each 4 * 24W LED lamps. | ||
| Illumination | 1200LUX | ||
| Control system | Switch controlling | Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | |
