Made in China Surface grinding machine with CE certification (SGA30100AH)

Product Description

Made in China Surface grinding machine with CE certification (SGA30100AH) Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:

Item		Unite	SG-2050H/AH	SGA-2550AH	SGA-3063AH	SGA-30100AH	SGA-4080AH	SGA-40100AH
			SG-2050AHR	SGA-2550AHR	SGA-3063AHR	SGA-30100AHR	SGA-4080AHR	SGA-40100AHR
			SG-2050AHD	SGA-2550AHD	SGA-3063AHD	SGA-30100ASHD	SGA-4080AHD	SGA-40100AHD
Table size		mm	200x460	250x500	305x635	305x1020	406x813	406x1020
Max.longitudinal travel		mm	510	560	765	1130	910	1130
Cross travel		mm	238	275	340	340	450	450
Max. Distance from spindle center to table		mm	450	450	580	580	580	580
Magnetic chuck size		mm	200x460	250x500	300x600	300x1000	400x800	400x1000
Speed of table longitudinal movement		M/min	7-23
Table transverse movement	Auto. Feed	Mm/min	0.1-8
	Mechanical speed	Mm/min.	990
	feed of handwheel	Mm/div.	0.02
wheelhead vertical movement	Auto. Feed	Mm/stroke	-----(AH/AHR mode ) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD Model)
	rapid speed		------(AH mode) 460 (Only for AHR/AHD model)
	feed of handwheel		0.005
Grinding wheel	speed	rpm	2850(50HZ),3450(60HZ)		1450(50HZ),1750(60HZ)
	(ODxWxID)size	mm	200x20x31.75		350x40x127
	Spindle motor	KW	1.5	2.2	5.5
Hydraulic motor		KW	0.75		2.2
Cooling pump motor		KW	0.04		0.125
Elevating motor		KW	------(AH mode)0.25 (AHR mode)0.5 (AHD mode,servo motor)
Cross feed motor		KW	0.04
Max. Loading capacity(including magnetic chuck)		kg	120	180	270	400	500	600
Total rate power		KW	3	3.7	9
Machine Height		mm	1675		1890
Floor space		mm	2050x1400	2300x1650	1900x2200	4400x2200	3600x2400	4400x2400
Gross weight		kg	1600	1800	2600	3300	3500	4000
Packing size		mm	1900x1720x2175	2000x2100x2175	2350x2220x2150	2950x2220x2210	2850x2270x2180	2950x2270x2210

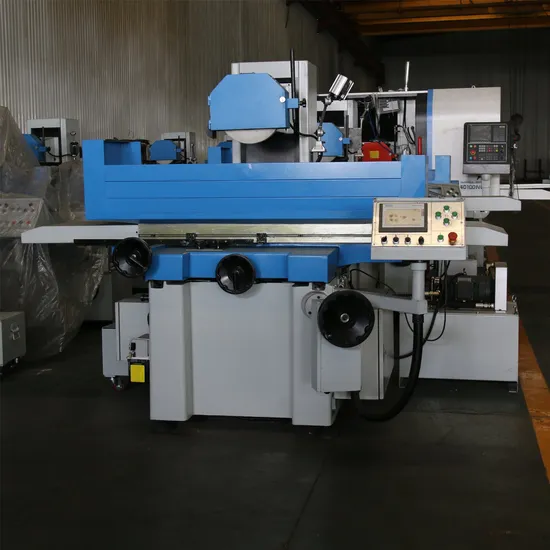

Detailed Photos
