US$0.10-2.00
|
100 Meters
(MOQ)
|
Basic Info.
Usage
Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Working Pressure
20bar-50bar
Working Temperature
-5ºC to +65ºC
Features
Oil Resistant, Abrasion Resistant, Weather Resista
Quality Grade
No Toxic Grade
Connection
Camlock, Kc Nipple, Hose Mender, Storz, Pin
Reinforced Material
High Strength Fiber
Transporting Medium
Water, Oil,Air
Bursting Pressure
60bar-150bar
Transport Package
Transparent Plastic Film Wrapped
Origin
Shandong, China (Mainland)
Production Capacity
3000tons/Year
Product Description

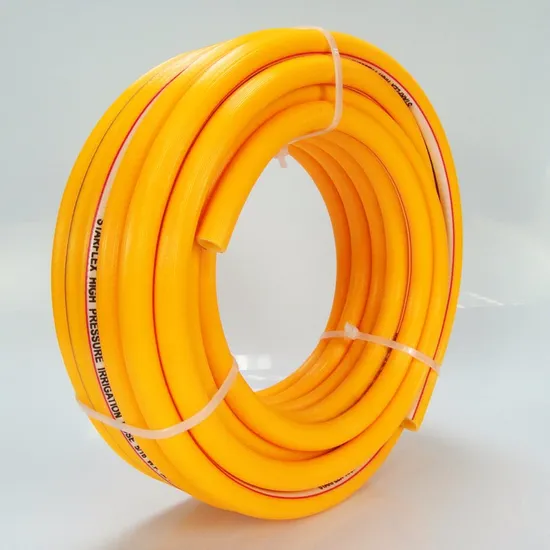

Customized 3 5 Layer Flexible Agricultural PVC High Pressure Water Air Spray Pipe 6 8 8.5 12mm Yellow Blue Color Plastic Tube Hose
PVC High Pressure Agricultural Spray Hose is also called PVC spray hose, spray hose, high pressure spray hose, agricultural spray hose, agricultural chemical hose, sprayer hose, herbicides spray hose, pesticides spray hose, gas hose, LPG hose etc. Which is an ideal hose designed for high pressure spray or transfer of various fluids in agricultural applications.
Application:
Widely used for high pressure transfer of air, gas, water, herbicides, pesticides, insecticides, fertilizers and other light chemicals for spray pumps, sprayer systems, garden equipments, golf courses, contractors, greenhouses compressed air and water systems and other spraying systems.
Features:
Good flexibility, light weight, chemical resistant, abrasion and weathering resistance, low inflation and elongation under high working pressure, UV resistant, smooth tube for minimum friction loss, ribbed cover to provide good scuff resistance for dragging, can be supplied with crimped couplings and various lengths available.
Specification:
Inner Diameter | Outer Diameter | Weight | W.P.(at 23ÂșC) | Std Length |
inch | mm | inch | mm | kg/m | bar | psi | m | ft |
1/4 | 6.5 | 0.452 | 11.5 | 0.096 | 30 | 450 | 100 | 300 |
6.5 | 0.493 | 12.5 | 0.121 | 50 | 750 | 100 | 300 |
5/16 | 8.5 | 0.531 | 13.5 | 0.117 | 30 | 450 | 100 | 300 |
8.5 | 0.571 | 14.5 | 0.146 | 50 | 750 | 100 | 300 |
3/8 | 10 | 0.629 | 16 | 0.166 | 30 | 450 | 100 | 300 |
10 | 0.7 | 17 | 0.2 | 50 | 750 | 100 | 300 |
1/2 | 13 | 0.787 | 20 | 0.25 | 25 | 375 | 100 | 300 |
13 | 0.827 | 21 | 0.29 | 50 | 750 | 100 | 300 |
5/8 | 16 | 0.944 | 24 | 0.34 | 20 | 300 | 100 | 300 |
16 | 0.985 | 25 | 0.391 | 40 | 600 | 100 | 300 |
3/4 | 19 | 1.102 | 28 | 0.45 | 20 | 300 | 100 | 300 |
19 | 1.142 | 29 | 0.509 | 30 | 450 | 100 | 300 |
1 | 25 | 1.339 | 34 | 0.563 | 20 | 300 | 100 | 300 |
Product Details:
Product Process:
Application:
Packaging:
FAQ: 1. Are you a factory or a trading company?
We guarantee that we are a manufacturer of PVC hoses, your visit will be highly appreciated!
2. What are you offering?
1) PVC hoses (layflat hose, suction hose, braided hose, garden hose, air hose etc.)
2) Hose couplings and clamps
3) Garden equipment
3. What's your payment types?
T/T, L/C, PayPal, Western Union, MoneyGram, cash etc.
4. What's your advantages?
Eastop is a trusted professional hose manufacturer, we have more than 20 years of production experience.
We own 80 production lines to make sure good quality hose and fast delivery time.
We promise to provide professional after-sales service, solve all kinds of technical problems at any time until customer satisfy.
We have join ****** trade assurance (a free payment protection service), payment more safety!
