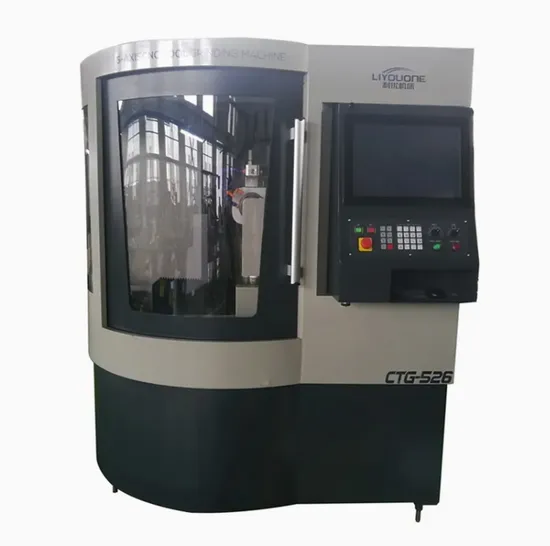

China Liyou Manufacturer Supply Five-Axis Five-Linkage CNC Tool Grinder Tool Grinding Machine

Product Description

Product Parameters

	CTG-X7
X-axis route:	460mm
Y-axis route:	800mm
Z-axis route:	320mm
C-axis route:	360°
A-axis route:	00
Control motor type:	servo motor x5 axis
Spindle power:	16kw
Spindle maximum RPM:	8000
Dimension/Weight:	1900*2400*2500mm/6000kg

Product Description

FEATURE
-Original developed operation software,3D graphical interface is intuitive.
-Spindle with double grinder
-Optional for high precision automatic mechanical arm,the cabinets of mechanical arm and grinding process work separately,no need to wait for each other.
-Universal size of feed tray and gripper.
-Double A axis for automatic wheel trimming and measuring.
-Optional for granite base+DD motor, or cast iron base+worm gear and screw rod.
-Automatic tool supporter
-Tool automatic honing.
FUNCTION
-5axis CNC inked motion,used for producing/resharpening high precision CNC tool/instrument/accessory.
-Application type:end mill, drill bit, ball end mill, screw tap, pagoda dill, plate drill,center drill,engraving tool,gun-drill, boring cutter, cutter blade, medical instrument,etc.
-Clamp diameter range:1~25mm
-Tool maximum length:400mm
-Tool maximum flute length:230mm
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
