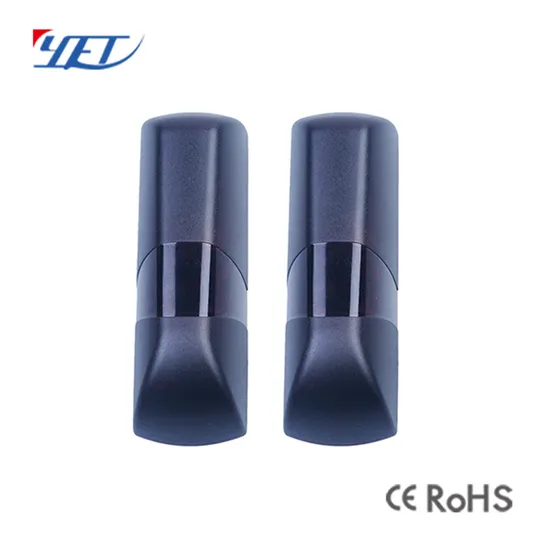

Factory Quality&Price Auto Gate Security Photocell Infrared Detector Beam Sensor Yet609
Basic Info.
Model NO.
YET609
Installation Mode
Wall Mounted
Certification
FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Application
Home, Industry, Communication Electronic Products, Special Equipment, Car/Motorcycle
Product
Auto Gate Security Photocell Infrared Detector Bea
Range
20 Meters
Packing
100 PCS/ Carton
Power
12-24V AC&DC
Weight
120g/PC
Protect
IP 55
Features
Anti -Sun
Align
Lens Rotation 0-180 Degree
Transport Package
Color Box
Specification
1 pair/box
Trademark
no
Origin
China
HS Code
8531901000
Production Capacity
5000000/M
Product Description
Product typeAuto Gate Security Photocell Infrared Detector Beam Sensor YET609
Application:
Security alarm, Sliding gate door, swing gate door, roller shutter/window
Spec.
| Specification: 1.Infrared Frequancy : 1.92khz 2.Power supply : 12 to 24 VDC /AC 3.Wave length :940nm 4.Input : r*15ma - t*30ma 5.Operating temperature : --20 degrees to 50degrees 6.Relay output : 1 a max *36 v 7.Dimension: 49.2 x 76 x 21.6mm 8.Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc Features: 1.Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc. 2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam. Narrow infrared beam (I or II) can avoid interruption by external light. 3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters). 4.The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid. | |
Roller Shutter RF Controller board
Used for roller , door, window, shutter, barrier.
Related product
1 beam infrared detector
certification
Packing
100PCS/ CARTON
