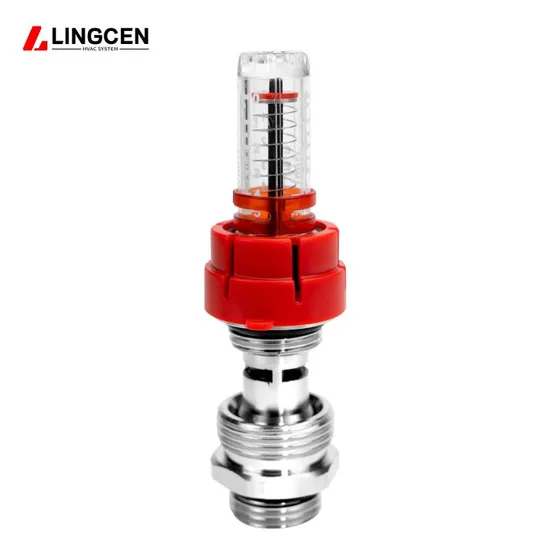

Manifold Valve Flow Meter for Floor Heating

Product Description

Online Customization
Product Description Product Details:

Product Name:	Manifold Valve Flow Meter For Floor Heating
Material:	brass hpb57-3
Application:	HVAC system
Nominal Pressure:	≤ 10bar
Applicable Medium:	Cold And Hot Water
Working Temperature:	T≤70°C
Range:	0-5L/min
Connection Branch Pipe:	3/4"xφ16 3/4"xφ20
Surface:	Nickel plated/Brass color
Connection Thread:	ISO 228 standard
Customized Support:	OEM, ODM
Specifications:	1/2"
Supply Ability:	50000 Pieces per Month

The flow meter is used to distribute and regulate water flow, adjusting the flow rate for each branch. Due to the varying lengths of each pipe, longer pipes have higher resistance and slower circulation, while shorter pipes have faster circulation. In this case, the flow meter can be used for regulation to achieve a balanced flow for each branch.
Usage instructions:
Lift the red protective cap on top and rotate counterclockwise to open; rotate clockwise to close. After adjusting, press the red protective cap back down.
Hot-Selling Products
Why Choose Us
Quality Control Process
Yuhuan Lingcen Hvac Co.,Ltd is specialized in HAVC system parts and brass valve fields for more than 15 years. Our product range includes the mixing group for underfloor heating system, manifold series, manifold fittings series, air vent and check valve series, mixing valve, boiler Fittings series, radiator valve series, radiator fittings series, thermostat series, stainless steel hoses series, and other related HVAC accessories. Additionally, we are capable of assisting customers in sourcing other required products based on their specific requirements.
Welcome to ask any question about our products.
FAQ
Q1.Are you a factory or a trading company?
A: We are direct factory and trading company, our production line includes brass, stainless steel products or according to your requirements.
Q2. Do you have any MOQ limit for valve order?
A: Low MOQ.1pc for sample checking is available.
Q3. Is the sample free or extra?
A: We could offer the sample for free if you could pay the cost of freight.
Q4. How long is your delivery time?
A: Generally it is 10-15 days if the goods are ready to ship. Otherwise it is 35-40 days.
Q5. What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment.
lf you have another question, pls feel free to contact us directly.
