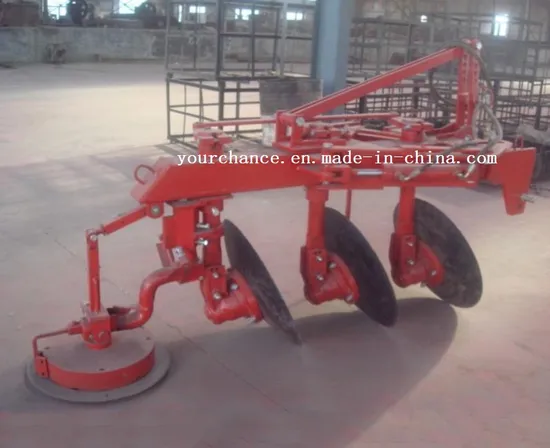

1ly (SX) -325 3 Discs 750mm Working Width Two Way Reversible Disc Plough for 60-80HP Tractor

Product Description

1LY(SX)-325 3 discs 750mm working width Two way Reversible Disc plough for 60-80HP tractor
1LY(SX) Series Disc Plough Main Features and Usage:
1LY(SX) Series Disc Plough, full name is Hydraulic Reversible Heavy-duty Disc plough, also named Reversible Disc plough, Two-way Disc plough, Heavy duty plough, Plow, Farm plough, Agriculture Plough, Tractor Plough.
1LY(SX) Series Hydraulic Reversible two-way disc plough products, which match for 50HP-150HP farm tractor, is mainly used for tillage on dry cultivated or fallow land.
It has Hydraulic system, so this Hydraulic reversed plough can be adjusted for the different width and different tractors, the. Hydraulic system is automatically and the operation is smooth without any troubles.When tillage,the two-way designing could reduce idling from both sides of the field.
It is constructed to be level swing. It's suitable for ploughing up the dry cultivated or fallow land. The discs are rotating forward during work, so the friction from soil is small and the discs are not easy to be wrapped and blocked up by grasses. With the long edge and the good wearing resistance of the discs, it's easy to plough into the soil and the land surface is level after ploughing.
It not only have the function of ordinary disc plough, but also have the characteristics of short idle distance of travel on the edge of fields, high productivity, low oil consumption etc.
It has noticeable advantages for working on the terraced field and small block field.
Main Specification and Technique parameters :

Model	unit	1LY(SX)-225	1LY(SX)-325	1LY(SX)-425	1LY(SX)-525	1LY(SX)-625
Working width	m	0.5	0.75	1.0	1.25	1.5
Working depth	cm	25~30cm	25~30cm	25~30cm	25~30cm	25~30cm
Q'ty of disc	pcs	2	3	4	5	6
Diameter of disc	mm	660	660	660	660	660
Overall weight	kg	600	620	700	830	950
Matched power	hp	50-65	60-80	80-100	100-120	120-150
Linkage	Standard three point mounted

We manufacture 1LY(SX) Series 2-6 discs Two way Hydrulic Reversible Disc plough:
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:
Disc plough by Iron crate case packing:
Best price will be quoted for you as soon as receive your Requirement !
