IP65 Waterproof AC Isolator 2p 415V 690V 35A 60A 80A TUV Approved Padlocked Isolation Switch
| US$3.00-18.60 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JHAS69
Installation
DIN Rail
Operation
Manual
Grounding Mode
Grounding
Movement Mode
Vertical Rotary Type
Number of Poles
3p/4p
Grounding
Single Ground
Run
Vertical Rotation
Switching Mode
Single Throw-in
Structure of Operating
Electric
Certification
ISO, RoHS, CE
Voltage Ui
690V AC
Rated Voltage
240V AC,440V AC
Current
20A/32A/40A/63A/80A
Condition
100% Original
Application
Solar PV System/EV Charger System
Mounting Type
DIN-Rail/Enclosure/Panel/Lock Door
on-off
Rotating Switch
IP Degree
IP66/IP20
Color
Yellow Box
Operation Type
Rotary
Quality Assurance
5 Years
Transport Package
Export Package
Trademark
Aswich
Origin
China
HS Code
8536500000
Production Capacity
1000000PC/Year
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
1.000kg
Product Description

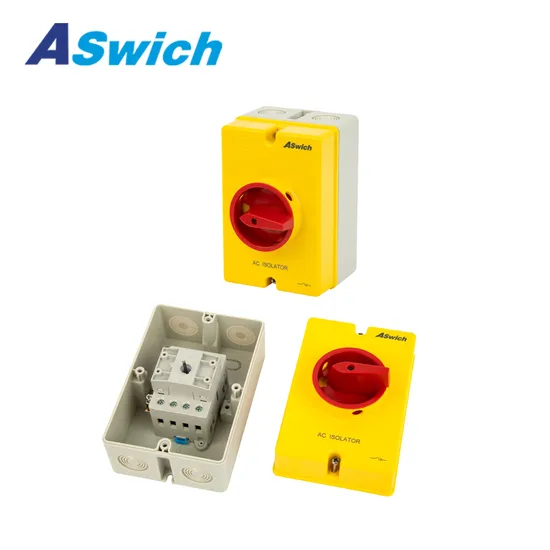

AC EAS69 Series AC isolator:Feature:
1.No polarity easy wiring
2.Multiple mounting types
3.Complete disconnect indication
4. Lockable
5.Auxiliary contact can be connected
Production introduction:
Technical Data
| Current | 20A | 32A | 40A | 63A | 80A | |
| Type | EAS6-EL20R-4 | EAS6-EL32R-4 | EAS6-EL40R-4 | EAS6-EL63R-3 | EAS6-EL80R-3 | |
| Rated carry current | 20A | 32A | 40A | 63A | 80A | |
| Rated operating current AC-23A | 16A | 25A | 32A | 45A | 45A | |
| Rated operating current AC-3 | 12A | 23A | 30A | 37A | 37A | |
| Rated power control AC-23A | 240V | 4KW | 7.5KW | 9KW | 15KW | 15KW |
| 440V | 7.5KW | 12.5KW | 16KW | 22KW | 22KW | |
| Rated power control AC-3 | 240V | 3KW | 5.5KW | 7.5KW | 11KW | 11KW |
| 440V | 5.5KW | 11KW | 15KW | 18.5KW | 18.5KW | |
| UL-CSA Motor load | 240V | 3KW | 5KW | 5KW | 10KW | 10KW |
| 440V | 7.5KW | 10KW | 10KW | 20KW | 20KW | |
| Rated short-time withstand current | 250A | 400A | 500A | 600A | 850A | |
| Cable | 0.5-10MM2 | 1-16MM2 | ||||
| Screw torque | 0.8-1.7N·m | 1.5-2N·m | ||||
| Rated insulation voltage | 690V | |||||
About us:
FAQS Q: If I'm interested in your DC Isolator when I can receive your quotation and detail information after send the enquiry? A:All your enquiry will be replied in 24hours. Q:Your DC Isolator seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others! A: Our DC Isolator is IP66 degree and they are high quality customized.for solar system I think compare the quality first and then compare the price is the best way. Q:Can I get a sample before the order because I really don't how is your DC Isolator quality? A:Of course!We also think sample order is the best way to build the trust. Q:How's the delivery?Because I really need them is urgently? A:For sample order 3~7days will be no problem.And for regular order we promise in 7-10days. Q:How's the warranty period for your JHAS69 AC Isolator? A:We offer 5 year warranty for our customer depend on different product
Q:What do you have for certificate?
A:All of our Isolator Switches and other products are all with TUV CE CB certificate, Some of them with SAA
