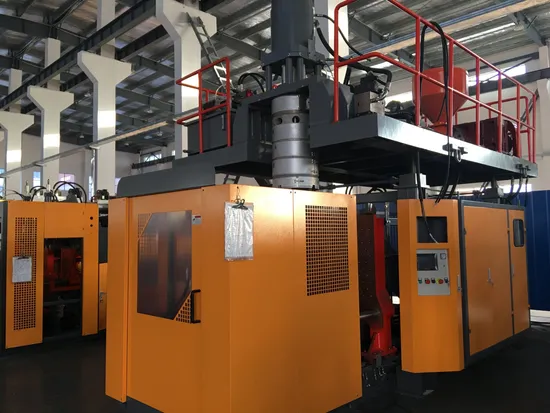

Automatic Extrusion Blow Molding Machine for Plastic Floating

Automatic Extrusion Blow Molding Machine for Plastic Floating

US$100,000.00-220,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
120
Raw Material
PC
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
After-sales Service
Online/Engineer
Plastic Material
PC
Screw Diameter
82mm
Plasticizing Capacity
160kg/Hr
Extruding Method
Extruding Method
Transport Package
Film
Specification
120L
Trademark
GM
Origin
China
HS Code
8477301000
Production Capacity
20sets/Year

Product Description


4Products: float plastic floating
Power supply: 380/220v 50/60 Hz Tri-phase
Die head number: 1
Suitable raw material: HDPE, PE And So on…
We adopt vertical type accumulating head of FIFO design and fine processing for inner parts. It's easy for changing plastic material or colors, this time can be reduced to 45 minutes. Our customers can save more time and material cost in this work link. Meanwhile, we also can make the accumulating head of double layer, triple layer, view stripe or double layer bestrew co-extrusion. Customers can save plastic material cost or increase the product strength.
The electrical control system includes :
HITECH colorful touch screen,
MISTUBISHI PLC,
/LG/RIKO/MEANWELL/OMRON low voltage electrical components,
DELTA inverters
parison controlling system.

We fix the earth wire connecting, open front door stop, emergency stop button, light curtains and power line insulation barrier to insure the operator's personal safety.

All electric cabinet is equiped with its separate cooling Fan for safety and long time running.
Your samples will be put in 3D measuring machine for making plane drawing & 3D drawing. After your confirmation to product design, the mould structure will be sent to you for negotiation. We use the good metal, hardened material, good design for cold runners to make your moulds. Meanwhile, the installation size matching with clamping unit is also taken into our consideration.
Basic parameters Suitable material HDPE,PE…
Max volume 500L
Output capacity 300pc/h
Size 5.8×2.2×4.5 (M)
Weight 32T
System Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system ,transducer control, self-protect function when started at low temperature
,,
Reducer Hard finishing,High intension,Low noise reducer
,,
Screw ∮120mm,L/D ratio 33, 38CrMoALA
120mm, 33:1,38CrMoALA
Cooling system available
Plasticization
350Kg/H HDPE
Heating Zone 5Aluminum Heater
5
Automatic heating
Heating power 30 KW/H
Extrusion Motor Motor90kw (380V,60HZ)
Cooling Fan 5zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
,
Die head numbe
r
1
Center distance of die heads /
Max die mouth ∮520mm
Heating zone 5 Stainless steel heating cycle
5
Clamping system Summarize High intension, rigidity, center mold locking, stable mould opening and clamping system
,,,
Clamping force 900KN
Template distance 1150 X1150mm
Max mould size 900X1450mm
Mould material High grade 50# steel
50#
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
PLC ()(,,,)

Japanese Mitsubishi PLC
System
PLC
Operate interface Touch screen, automatic self-diagnose alarm system
,
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
,,
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V/220V,50/60HZ)37kw
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 80-100Kg/cm²
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.8Mpa
Air displacement 1.6m³/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
,,
Cooling medium Water
Water flow 180L/min
Water pressure 0.3-0.6MPa

GM-0196
