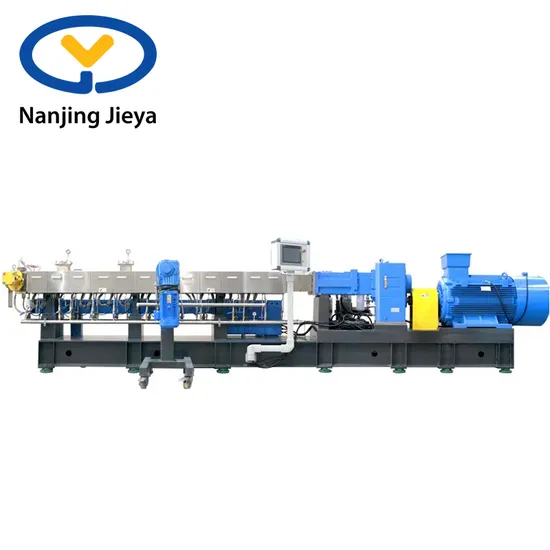

High Torque Co-Rotating Parallel Plastic Masterbatch Filling and Compounding Twin Screw Plastic Extruder Granulator

Product Description

Product Description
Industry-leading machining center
The most difference making us outstanding than other factories is our strong processing capability .
Equipped with more than 50 sets of various types of machining equipment,core parts of the twin screw extruder are all manufactured at our own factory which makes the production cost and quality controllable .
Twin screw extruders core components are all self-made to guarantee the machine quality.
High torque gear box-self made
Torque rating grade: 9≤T/A3≤13.5, high torque gear box, high grade domestic main components, NSK/INA brand bearings.
Imported gear box and safety clutch are optional, which can further improve the performance of machines.
Screw-self made
Screw element is with closely intermeshed design, block type and can be easily exchanged to suit different material.
Barrel-self made
Precision grade can reach to IT 6. It is benefit for energy reduction and block type design makes it possible for various combination.
Quality inspection
We have a portable US Hexagon-Romer articulated arm measuring instrument, laser alignment tool, high precision testing equipment. Advanced manufacturing hardware platform combined with a careful inspection to ensure that equipment components manufacturing and assembly accuracy with a host of industry-leading level.
Product Parameters

Model	Screw Diameter (mm)	L/D	Screw RPM	Main Motor KW	Torque Grade T/N3	Output kg/h
HT-26	26	32-68	300-900	7.5-22	11.2	30-80
HT-36	35.6	32-68	300-900	18.5-55	10.9	60-200
HT-42	41.2	32-68	300-900	30-90	11.6	100-300
HT-50	50.5	32-68	300-900	55-160	11.8	200-600
HT-63	62.4	32-68	300-900	110-315	12.3	350-1000
HT-72	71	32-68	300-900	160-450	11.8	600-2000
HT-85	81	32-68	300-900	220-630	11.2	800-2500
HT-95	93	32-68	300-900	355-900	11.8	1200-3000
HT-135	133	32-68	300-900	1000-3000	12	3500-10000

Applications

Filling modification	PE, PP, EVA, ABS, PC, PS, etc+calcium carbonate, talc, glass beads, SiO2, aluminum hydroxide. Magnesium hydroxide, brocade oxide, sulfuric acid
	PP, PA, ABS, etc. + iron powder, magnetic powder, aluminum powder, stainless steel wire, ceramic powder
Blending modification(rubber and plastic compounding, plastic alloy	PE, PP, PS+SBS, PP, PA+EPDM, POE, PP+NBR, EVA + silicone rubber, etc.
	PA, PC+ABS: ABS+TPU: PBT+PET: PP+PE, etc.
Masterbatch	PE, PP, ABS, EVA, PS, PBT, PET, etc. + pigments and other additives
Functional masterbatch	Biodegradable masterbatch: PE, PS, PP + starch, etc.
	Flame retardant masterbatch: PE, PP, PA, ABS, PBT, etc. + flame retardants and other additives
	Polyethylene master batch,anti-fog and anti-aging, high thermal insulation masterbatch, cooling masterbatch, rheology modified masterbatch, anti-rust masterbatch, stiffening masterbatch, antistatic masterbatch, antibacterial masterbatch
	Carbon black masterbatch: PE, EVA, ABS, PET, etc. + carbon black
Glass fibre (Carbon fibre)Reinforcement (MD model short fibre)	PP, PBT, ABS, AS, PA, PC, POM, PET, PEEK, PPO, PES, etc. + long glass fiber or short glass fiber
	PP, PBT, ABS, AS, PA6, PA66, PC, POM, PET, etc. + long carbon fiber or short carbon fiber
Thermoplastic elastomer	TPR, TPU, TPV, SBS, SEBS, SIS, etc
Special material	EVA, PU hot melt adhesive, silicone adhesive, UHMWPE spinning
	Fluororubber, fluoroplastics, LCP, PEEK, PES, PL, PSU, etc.
	Optical cable covering material, acetate fiber, PP cigarette filter material, conductive plastic
	TPR, PU, EVA foam sole material
	Luminous plastics, antibacterial plastics, anti-UV plastics, PE cross-linkable pipe materials food, pet feed
Various cable materials	HDPE, LDPE, LLDPE, MDPE, PP, EVA Insulation material, sheath material, PF Radiation cross-linked cable material, PE Silane cross-linked cable material
	Flame retardant polyolefin cable materials, low smoke halogen-free flame retardant cable materials
	Low smoke and low halogen flame retardant PVC cable material
Reactive extrusion	Polyamide polycondensation reaction, polyester melt polymerization reaction, polyurethane polycondensation reaction, polycarbonate polycondensation reaction, polyoxymethylene bulk continuous polymerization reaction, PMMA polymerization
Devolatilization	Chlorinated polypropylene, chlorosulfonated polyethylene, fluorine rubber, butadiene rubber, SBS, EPDM, SEBS, SIS, etc.
Powder coating	Polyester type, epoxy type, acrylic vinegar type, polyurethane type, acrylic vinegar, phenol resin, etc.

Company Profile
Certifications
Exhibitions
Our Customers
Packaging & Shipping
FAQ
1.Are you a factory or trading company?
We're a factory, located in Lishui, Nanjing city with 20 years experience.
2.What's your advantages over other vendors?
The greatest advantage over other vendors is our strong processing capability .
Core parts of the twin screw extruder is all manufactured at our own factory which makes the production cost controllable.That's why our machine enjoy a high performance to price ratio.
Other advantages include:
Excellent quality control
Professional Tech. and R&D team
Mega after-sale service
Sufficient spare parts
Fast delivery
Competitive price
3.Where is your factory located? How can I visit there?
Our factory is located in NO. 337 East Zhening Road, Zhetang Town, Lishui, Nanjing, Jiangsu Province, China.
(1) You can fly to Nanjing Lukou Airport directly. We will arrange to pick u up at Lukou airport.
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed bullet train, then we will pick you up at Nanjing south railway station.
4.How can I know the status of my order?
We will keep you updated by photos and videos. Once the machine is completed and ready for shipment, we will inform you to come to inspect the machine.
5.How long is the deliver time?
Normally, 45 days from the date we receive your deposit.
6.How long is the warranty?
One-year warranty for the whole machine.
