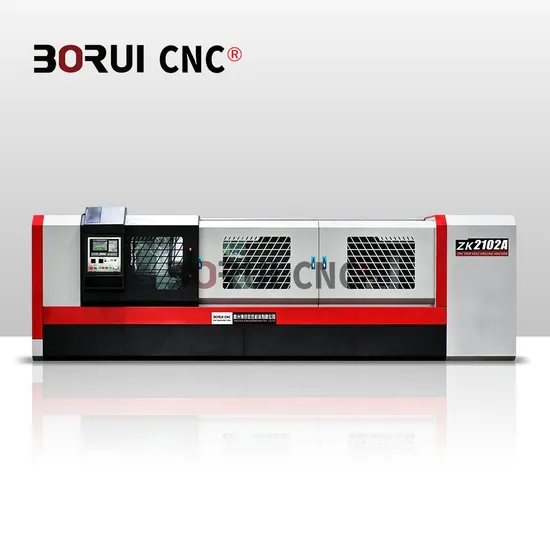

Borui Zk2102A China Supplier Automatic CNC Deep Hole Drilling Machine
| US$29,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZK2102A
Structure
Deep Hole Drilling
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Deep Hole Drilling Machine
Keyword
CNC Deep Hole Drilling Machine
Application
Make Holes
Name
Automatic Drilling Machine
Machine Type
Automnatic
Usage
Tapping Metal Parts
Function
Tapping Holes
Model
Zk2102A
Color
Custom-Made
Transport Package
Standard Export Packaging
Trademark
BORUI
Origin
Shandong China
HS Code
8457101000
Product Description
BORUI ZK2102A China Supplier Automatic CNC Deep Hole Drilling MachineProduct Description
Specification:
| Specifications | ZK2102A | ZK2102A×2 | ZK2102A×4 | ZK2103A | ZK2103A×2 | ZK2104A | ||
| Number of spindles | 1 | 2 | 4 | 1 | 2 | 1 | ||
| Spindle spacing | | 120/180mm | 120mm | | 180mm | | ||
| Borehole diameter range | 3-20mm | 3-20mm | 3-10mm | 4-16mm | 8-20mm | 6-30mm | 6-30mm | 10-40mm |
| Maximum drilling depth | 500/1000mm | 440/950mm | 440/950mm | 440/950mm | 440/950mm | 440/950mm | ||
| Total power of machine tool (approx.) | 7000r/min | 7000r/min | 7000r/min | 6000r/min | 5000r/min | 7000r/min | 6000r/min | 3000r/min |
| Power of main motor of drill pipe box | 4kW | 4kW×2 | 3.7kW×2 | 4kW×2 | 5.5kW×2 | 5.5kW | 5.5kW×2 | 7.5kW |
| Headstock spindle speed (fixed) | 380r/min | 600r/min | 500r/min | 380r/min | 600r/min | 380r/min | ||
| Headbox main motor power | 1.5kW | 3kW | 2.2kW×2 | 1.5kW | 2.2kW | 5.5kW | ||
| Tool feed speed range (stepless) | 5-500mm/min | 5-500mm/min | 5-500mm/min | 5-500mm/min | 5-500mm/min | 5-500mm/min | ||
| Spindle speed of drill pipe box (stepless) | 800-7000r/min | 800-7000r/min | 1000-7000r/min | 800-5000r/min | 600-4000r/min | 600-6000r/min | | 100-3000r/min |
| Feed speed range (stepless) | 5-500mm/min | 5-500mm/min | 5-500mm/min | 5-500mm/min | | 5-500mm/min | ||
| Tool feed rapid travel speed | 3m/min | 3m/min | 3m/min | 3m/min | 3m/min | 3m/min | ||
| Tool feed motor torque | 7.7Nm | 7.7Nm | 7.7Nm | 10Nm | 10Nm | 10Nm | ||
| Cooling system * high pressure | 10MPa | 10MPa | 10MPa | 10MPa | 10MPa | 10MPa | ||
| Cooling system * large flow | 100L/min | 100L/min | 100L/min | 100L/min | 150L/min | 100L/min | 150L/min | 150L/min |
| Total power of machine tool (approx.) | 20kW | 24kW | 39kW | 40kW | 42kW | 22kW | 28kW | 38kW |
| Overall dimensions of machine tool (length × wide × High) | 4.05/5.05×4.05×2.05m | |||||||
| Total weight of machine tool (approx.) | 6t/7t | 6t/7t | 6t/7t | 6t/7t | 6t/7t | 7t/8t | ||
| Machining hole diameter accuracy of machine tool | IT7-IT11 | |||||||
| Roughness of machine tool | Ra0.4-3.2µm | |||||||
| Deviation of center line of machine tool machining hole | Workpiece does not rotate:≤1mm/1000mm Workpiece rotation:≤0.5mm/1000mm(Aspect ratio≤100:1) | |||||||
| Straightness of machined holes | ≤0.05mm/100mm(Aspect ratio≤100:1) | |||||||
