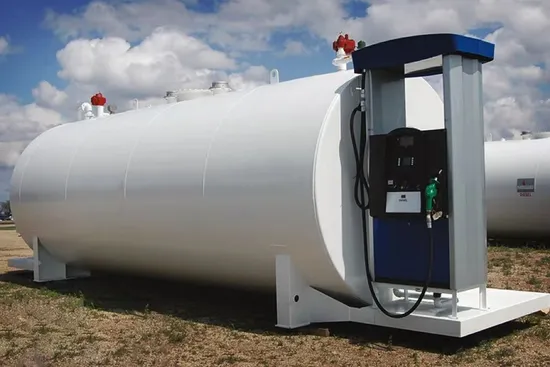

Diesel Fuel Storage Tank Oil Fuel Tank with Skid Dispenser

Product Description

Presenting the Aboveground Single Wall Diesel Gasoline Fuel Storage Tank, meticulously engineered for chemical applications. This tank exemplifies excellence in design and functionality, ensuring optimal storage solutions.
Detailed Product Description
Discover the robustness of our Stainless/Carbon Steel Storage Fuel Tank, purposefully crafted to store oil, diesel, and an array of chemical liquids. Constructed from top-tier carbon steel, these tanks are available in both vertical and horizontal formats to accommodate every storage need. With options for cylindrical, square, and spherical designs, these tanks offer unmatched flexibility. Precision-engineered horizontal tanks feature end covers, circular or oval tubular walls, and saddles, making them perfect for production facilities or gas stations. They stand as a testament to durability and cutting-edge innovation.Precision Skid Stainless Steel Tank We offer tanks in various volumes generally under 100 cubic meters. Whether round, oval, or uniquely configured, our tanks are tailored to meet a wide range of client demands.
Comprehensive Technical Details
1. Pressure: Atmospheric; Temperature Range: From a chilly -19 ºC to a scorching 200 ºC.
Medium: Perfectly designed for the storage of sulfuric acid and an assortment of petroleum chemical raw materials, ensuring optimal performance.
2. Capacity: Offers an adaptable range spanning from 2m³ to 100 m³.
3.Precision Stainless Steel Fuel Tank Our tanks boast wall-ray protection, an anti-static design, and comprehensive fire control measures. Each feature is tailored to meet the specific engineering requirements, ensuring unrivaled safety and compliance with sanitation standards.
4. Advanced Anti-Corrosive Measures:
The anti-corrosion strategy for tank walls is meticulously determined based on the nature of the stored medium. Additionally, the external wall corrosion protection is expertly adapted to the soil conditions surrounding the tank.
5. Type: Available in both horizontal and vertical configurations, designed to meet diverse customer preferences and applications.
6. Layer: Choose between single or double-layered tanks, tailored to match customer specifications for optimal performance.
7. Capacity Options for Fiberglass Fuel Tanks: Ingeniously designed to accommodate capacities ranging from 1,000 to 100,000 liters, precisely tailored to client requirements.
Technical Parameter Breakdown
1. Tank Volume: From 2-100cbm, with customizable options for a perfect fit.
2. Tank material: Options include Carbon Steel, Stainless Steel, and Aluminium.
3. Tank shape: Available in round, square round, and elliptical configurations.
4. Tank accessories: Includes essential components such as valve, piping, and flange.
Optional Enhancements: Drip tray, Sight gauge, Dipping, Taps, Vent pipes, Fixed couplings & Screw fittings, Overfill prevention device, Delivery pipe, and pump for a comprehensive setup.
Basic Parameters and Size Insights for Horizontal Tank

Capacity (cbm)	Tank shape	Diameter (mm)	Length (mm)	Tank wall thickness(mm)
5	Cylindrical	1600	2770	5
10	Cylindrical	1800	4420	5
15	Cylindrical	2200	4440	6
20	Cylindrical	2200	5500	6
25	Cylindrical	2200	6820	6
30	Cylindrical	2200	8140	6
40	Cylindrical	2200	10820	6

Comprehensive Accessory Line-Up
Essential Main Accessories forState-of-the-Art Stainless Steel Fuel Tank with Double Wall:
· Access Manhole: Ø 600 mm (or customized to purchaser's specifications), complete with a high-quality gasket and secure bolted cover.
· Loading Access Port: Features a lockable quick cap and an overfill protection valve, designed for seamless operational efficiency.
· Vent: Outfitted with a flame arrestor net, ensuring superior safety.
· Suction Line: Includes a robust foot valve and strainer, promoting efficient fuel extraction.
· Dip Stick: Expertly crafted from aluminium, calibrated for accurate manual measurement of fuel levels.
· Level Gauges: Available in both mechanical and electronic versions, offering precise measurement for all needs.
Our extensive range of pumps and fuel meters is meticulously designed to cater to a wide array of requirements and applications. For comprehensive control, an advanced fuel management system can be optionally installed, ensuring optimal fuelling operations and tank level management.
Advantage
Experience the unrivaled benefits of our Stainless Steel Fuel Tank, masterfully engineered with double walls to ensure durability and reliability in every application, as detailed below: 1 Security:
Crafted from robust 6mm thick stainless steel, our inner layer surpasses ordinary tanks, typically only 5mm thick, offering enhanced strength and resilience that significantly bolsters tank durability and integrity.
The outer layer, crafted from superior reinforced fiberglass with a minimum thickness of 2.5mm, excels in providing outstanding resistance to compressive shocks, while effectively countering corrosion and electrical erosion.
Our groundbreaking technology introduces a 0.1mm gap between the layers, effectively neutralizing potential hazards at the source. Equipped with an advanced leak detector, it provides continuous 24/7 real-time monitoring, proactively addressing any leakage concerns.
2 Economy and Practicality:
The meticulously engineered double-walled fuel tank is designed to offer a service life that is 5 to 10 times longer than conventional tanks, confidently providing at least 30 years of safe usage. Its easy installation significantly lowers construction time and investment expenses.With the fiberglass fuel tank, maintenance needs are reduced to just 1/10th of standard oil tanks, leading to substantial savings in upkeep costs.
3 Environmental Protection:
The innovative double-layer construction, featuring a precise 0.1mm gap, ensures that any potential leaks are securely contained within the outer FRP layer. This design prevents direct contamination of soil and water, while the FRP exterior is protected against electrolytic corrosion from groundwater and saltwater.
Company Introduction
Guangtai Intelligent Manufacture & Technology (Jiangsu) Co., Ltd. excels in delivering comprehensive turn-key energy equipment solutions. We provide energy equipment, station construction, government approval assistance, fuel dispenser systems, and station management services. Our expertise resolves diverse operational challenges, with over 500 successful station implementations across China, serving industries including military, petrochemical, aeronautics, automotive, and transportation.
Founded in 2017, Guangtai Intelligent Manufacture & Technology (Jiangsu) Co., Ltd. is strategically situated at No. 200, Dingdian, Zhennan Village, Dantu District, Zhenjiang City, Jiangsu Province, covering 40,000 square meters. We boast a specialized R&D team and state-of-the-art facilities, holding numerous national patents and test certifications.
Certification:
Our company is empowered by a formidable technical force, state-of-the-art equipment, and cutting-edge technology, complemented by exceptional detection capabilities. We've implemented a comprehensive quality assurance system, achieving UL certification, ISO9001 Quality Management, ISO14001 Environmental Management, and OHSAS18001 Occupational Health and Safety certifications.

Why Choose Us:
1. Our skilled design team specializes in custom steel tank fabrication, catering to unique client specifications. We welcome any drawings or samples for bespoke oil tank production.
2. With 20 years of dedicated expertise in the steel tank industry,we guarantee superior quality and dependability in every product. Our adept production team, paired with advanced manufacturing technology, consistently delivers exceptional products that meet and exceed industry standards.
3. Our comprehensive global after-sales service network provides extensive technical support, ensuring prompt and efficient service worldwide for complete customer satisfaction.
4. Our products enjoy a solid presence in the global market, with successful exports to vibrant regions including Singapore, India, Australia, Japan, Nigeria, Angola, Djibouti, Ecuador, and South Africa.
