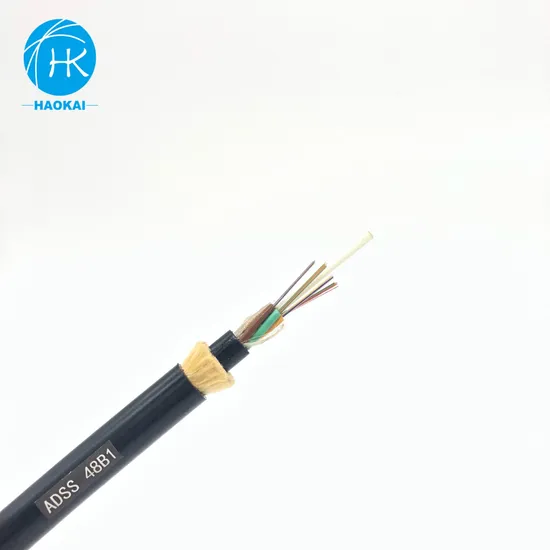

Outdoor Aerial Self Supporting G652D ADSS Fiber Optic Cable
| US$0.28 | 100,000 Meters (MOQ) |
Basic Info.
Model NO.
ADSS
Connection Structure
Joint Box
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
2-288
Certification
RoHS, CE, ISO9001
Brand
OEM
Sheath Material
HDPE
Diameter
8.0mm/9.0mm/12.0mm
Structure
Central Loose Tube
Customize
Yes
Strength Member
Steel Wire
Applications
Aerial Installation/Direct-Burial/Duct
Transport Package
Wooden
Specification
700*700*600mm
Trademark
HAOKAI
Origin
Dongguan
HS Code
85447000
Production Capacity
1000000m/Day
Product Description
Outdoor aerial Self Supporting G652D ADSS Fiber optic cableProduct characteristics 1.Power-free erection
2.AT sheath is adopted, which has excellent electrical mark resistance.3. Light weight and small cable diameter, reducing ice, wind influence and load on tower and support.
4.The span is large, with the maximum span exceeding 1000 meters.
5.Excellent tensile properties and temperature characteristics
Performance characteristics 1.Excellent water barrier layer with good water permeability resistance2.Steel strip bonding outer sheath and metal reinforcement, excellent tension performance3.Beam tube center design, the optical fiber is minimized in the lateral force resistance of the optical cable
Product Parameters
| Cable OD. (mm) | Weight (kg/km) | Tensile daily (kN) | Max. tensile daily (kN) | Broken strength (kN) | working temperature (ºC) | Thermal expansion coefficient (10-6/K) | Span (m) | |
| PE Jacket | AT Jacket | |||||||
| 9.0 | 75 | 85 | 1.20 | 3 | 7 | -40~+60 | 1.2 | 50 |
| 9.8 | 80 | 90 | 1.50 | 5 | 10 | -40~+60 | 1.3 | 100 |
| 10.0 | 85 | 95 | 2.00 | 6 | 15 | -40~+60 | 1.3 | 150 |
| 10.8 | 95 | 100 | 2.20 | 8 | 18 | -40~+60 | 1.3 | 200 |
