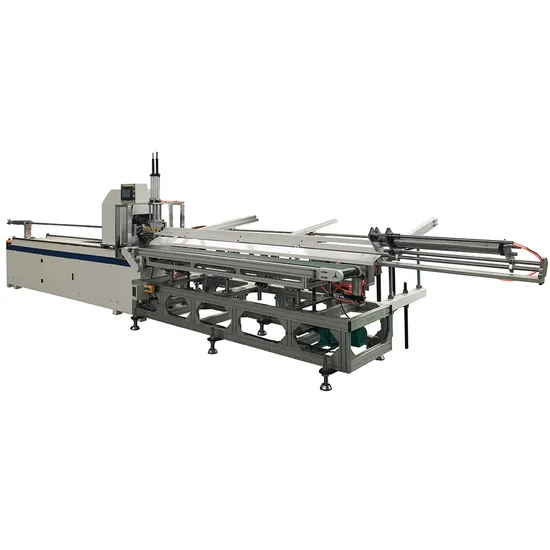

Paper Core Cutting Machine 2000mm Fully Automatic Shaftless Paper Core Cutting Machine Plastic Core Paper Pipe Paper Tube Cutting Machine PVC PPR Core Cutter

Paper Core Cutting Machine 2000mm Fully Automatic Shaftless Paper Core Cutting Machine Plastic Core Paper Pipe Paper Tube Cutting Machine PVC PPR Core Cutter

US$35,000.00 1 Box (MOQ)

Basic Info.

Model NO.
JT-SL-2000C
Paper Core Usage
Instrument Package
Tube Machine Type
Paper Core Cutting Machine
Gumming Type
Double Side
Layers of Roll Paper
9 - 16
Reelpipe Speed
12 - 18m/minute
Wall Thickness of Paper Tube
1mm-15mm
Certification
CE, SGS
Condition
New
After-sales Service
Video Call
Product
Paper Core Cutting Machine 2000mm Fully Automatic
Jumbo Tube Length
2000mm
Paper Tube Inner Dia
50-152mm
Paper Tube Thickness
4-15mm
Cutting Length
10-2000mm
Cutting Speed
60 Cuts/Min
Turret Movement Speed
1.8 M/Min
Working Pressure
0.6MPa
Voltage
380V 3 Phase 50Hz
Power
3kw
Transport Package
Film and Wood-Case
Specification
4000*920*1600mm
Trademark
Jota Machinery
Origin
Kunshan
HS Code
84411000
Production Capacity
20PCS/Month

Product Description

Paper Core Cutting Machine 2000mm Fully Automatic Shaftless Paper Core Cutting Machine Plastic Core Paper Pipe Paper Tube Cutting Machine PVC PPR Core Cutter
Main Parameters:
Jumbo Tube length 2000mm
Paper Tube Inner Dia 50-152mm
Paper Tube Thickness 4-15mm
Cutting Length 10-2000mm
Cutting Speed 60 cuts/min
Turret movement speed 1.8 m/min
Working Pressure 0.6Mpa
Voltage 380V 3 Phase 50Hz
Power 3kw
Cutting Mode Paper tube turn; knives and axes do not turn
Operator 1 person
Mould 2 sets
Uploading/Unloading Hand control
Dimension 4000*920*1600mm
Weight 2500kgs

Specification:
Machine adopts Taida PLC(Taiwan) and Xianda HMI(Shenzhen) control system, all the parameters are displayed on the touch screen, and it runs automatically.
It adopts Shenzhen Zhengxuan frequency inverter and Xinling motor(Zhejiang) to control.
It adopts 2 sets Yaskawa servo motor(Japan), one servo motor(0.85kw) to control cutter blade, the other servo motor(1kw) is moved, it control machine head.
It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head.
It adopts double round blades to cutter.
It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head.
It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head.
It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components.
Paper tube clamping adopts automatic chucks.
Certification CE,SGS, Gold Supplier, etc.
MOQ 1 set. (More than 3 sets, offer a special discount)
Perfect After-sale System Technicians can service overseas.
Prompt Reply Within 24 hours.
Yearly Production Capacity More than 100 sets.
Packing Details With flexible wrapping and export standard wooden case.
Delivery Time Within 30 days after receipts of 30% payment, the rest 70% paid before shipping.
Terms of Payment T/T, L/C
Delivery Clause FOB Ningbo/Shanghai Port
Packaging Details Paper Core Cutting Machine 2000mm Fully Automatic Shaftless Paper Core Cutting Machine Plastic Core Paper Pipe Paper Tube Cutting Machine PVC PPR Core Cutter is with flexible wrapping and wooden case. It is included one year guarantee time, whole life technical support, a box of tools, two pieces blade and exporting standard wooden case.

Packaging & Shipping Packaging Details: Multi Functional Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter is with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Delivery Details: Within 45 days after receipt of 30% payment by T/T. Multi Functional Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter.
Company Information
Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us to win a mutual benefit future.
Our Certificate:
Our Service
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q3. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
FAQ
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
