High Quality Textile High Temperature Dyeing Machine

Product Description

Product Description
Product Description

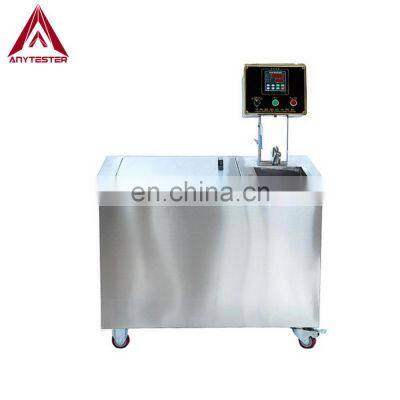

HY0143 High Temperature Dyeing Machine is the classic lab dyeing machine. It is for formulation of production recipes. Single bath with hinged lid, fitted with manually controlled water cooling coil.
Specification

Model	HY0143
Dyeing pot numbers	12, 24 selectable
Dyeing pot volume	150ml, 250ml,, 350ml, 450ml, selectable
Temperature range	R.T~ 140oC
Keeping temperature	0-99min
Max. heating rate	0-3.5oC/min
Temperature accuracy	±0.5
Rotation speed	45 rpm
Heating mode	Glycerin bath or water batch
Cooling system	Water
Power supply	220V, 50Hz,
Dimensions	84*69*130cm
Weight	150kg

Details & Features
★ Equipped with a programmable intelligent computer control★ Adopt solid state relay to control temperature, makes it more accuracy and uniform
★ 360o tumbling rotation make the dyeing more uniform and is widely used for all fabric
★ The body is made of stainless, good appearance and durable.
★ Different working position and dyeing pot volume selectable.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
