SIMCOM GPS GNSS Antenna Module SIM33EAU with Embedded Patch Antenna

Product Description

Product Description

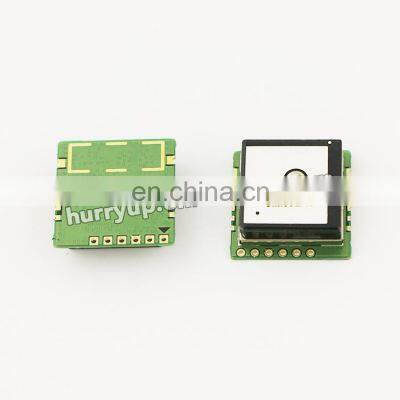

DescriptionSIM33EAUSIMCom presents a high performance GNSS module accompany with GNSS antenna SIM33EAU. This is a standalone GNSS module include an embedded patch antenna on it. Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to- First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.Mechanical data•Dimensions: 22*22*7.5mm•Weight: 8.5gFeatures•Support GPS/GLONASS/Galileo/QZSS•Support EASYTM self-generated orbit prediction•Support EPOTM orbit prediction•Support AGPS•Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)•Support Jamming Removing•Low-noise amplifier has been integrated Interfaces•Serial interfaces UART•Digital I/OTIMEMARK (PPS)3D-FIX•ProtocolsNMEAPMTK Support product •SIM68 EVB KIT with USB V2.0 full speed interfacePerformance data•Receiver type33 tracking/99 acquisition- channel GNSS receiver•Max. update rate 10Hz•Sensitivity1 Tracking:-165 dBmCold starts: -146 dBmHot starts: -160 dBm •Time-To-First-Fix2 Cold starts: 31 s (typical)Warm starts: 26s Hot starts: <1s EPO Assist: 13s（CTTFF)• AccuracyAutomatic Position3: 2.5m CEPSpeed4: 0.1m/s•Operation temperature: -40℃~+85 ℃ Electrical data•Power supply 2.8~4.3V•Backup power: 2.3V~4.3V•Power consumption2: 3.3V（typical）Acquisition: 38mATracking: 32mAStandby 520uABackup 14uAWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
