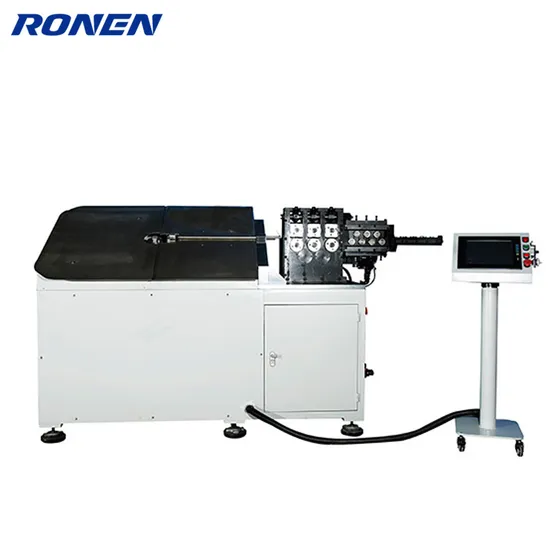

High Quality Diameter 5mm Kitchen Stainless Steel Dish Drain Rack Wire CNC 3D Bending Machine

Product Description

Forming Wire Bending Machine Technical Parameter:

Project / Model		RN-06-6A
Machining line diameter		3.0mm - 6.0mm soft steel wire (20# steel)
Maximum wire feeding speed		50m/min
The minimum time required to twist the head 90 degrees		0.1s
The minimum time required to reverse the transformation of the core		0.2s
The minimum time required to turn the line at 90 degrees		0.2s
Maximum lifting speed of torsion mechanism		250mm/sec
Maximum feed stroke		Unlimited
Feeding mode		Roller feed line
Maximum bending radius		20mm
Maximum bending angle		180°
Every set bending number		Unlimited
Set number of files		Unlimited
Working speed	Bending speed	180°/0.5sec
	Rotation speed	360°/2sec
	Feed speed	700mm/1sec
Accuracy	Bending angle	±0.05°
	Angle of rotation	±0.05°
Material input mode		1.numerical formula; 2. teaching method
Controller		Industrial computer
CNC data input		Touch screen input + hand wheel input
Bending (C) servo motor power		1.0 KW
Rotating (B) servo motor power		1.0 KW
Power supply (Y) servomotor power		2.0KW
Electrical capacity		15KVA
Machine weight		2000KG
Machine size L*W*H(mm)		2300*1600*1650MM

Company Information "RONENFORM" BG(a member of RGL) is dedicated to manufacturing series of Wires/Springs Forming Machines, Tubes Bending Forming Machines, and various auxiliary equipment and spare parts. The company is headquartered in Beijing, and its manufacturing workshop is located in Baoding and Cangzhou. It provides high quality equipment for domestic and foreign pipe and auto parts customers, with rich experiences of serving the industrial field for more than 20 years, "RONENFORM" becomes a reliable professional wire/tube forming equipment supplier and life time partner. "RONENFORM" does not only provide machines, but also the know-how on specific products thanks to backup by a technician team consists of many top professors-being called "Craftsman", we are confident to guarantee all our customers that our manufacturing level /serving level ranks at the top all over China. We follow up the principle of "ZERO FAULT"on each steps of business with you. RONENFORM will always be here for you!
Metal Wire Forming Bending Machine Description
High Quality Diameter 5mm Kitchen Stainless Steel Dish Drain Rack Wire CNC 3D Bending Machine
American Market Quality Auto 3D CNC Wire Bender /Automatic 3D CNC Wire Forming Machine Metal Bending Machine/Steel Bar Bending Machine
Steel Wire Bending Machine Product Advantages: 1. In principle, the head turning molding machine has the advantages of no turning, light head structure and no turning, which ensures the fast and stable production operation.
2. Computer power on, power off fast, simple and convenient operation. The computer interface can adjust the speed and change the program at the same time of production.
3. High speed motor imported from Japan and reducer imported from Germany are used in the configuration. The production speed is more than 25% higher than that of domestic counterparts.
4. Wire feeding and rotating arm are separated and matched. When the head is turned, the wire can not be turned, and the small outer diameter arc and multi circle products can be formed.
5. The production can realize that the angle does not change at the slowest angle, and the production stability is better.
6. Bearing, gear and other important parts are imported from Taiwan, with 8760 hours guarantee, and the equipment is durable and reliable.
7. High precision, can do 2.0-14 mm wire diameter range of wire forming products, error reduced to 0.1 mm
8. The matching use of the steel wire butt joint machine makes the line changing operation of the machine more convenient. Ronen Group Related Products
