Infrared 3 Axis CNC 350 Mono-Block Stone Slab Bridge Saw Machine Industrial Marble Granite Cutting Machine

Infrared 3 Axis CNC 350 Mono-Block Stone Slab Bridge Saw Machine Industrial Marble Granite Cutting Machine

US$10,500.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HTQ350A/B/C/D
Type
CNC Cutting Machine
Usage
Granite, Marble
Application
Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Blade Diameter
350mm
Worktable Size
3200X2000
Max. Cutting Size
3200X2000X50
Turnover Angle of Worktable
0-85degree
Main Motor Power
15kw
Transport Package
Plastic Film
Specification
5000X3000X2400
Trademark
haineng
Origin
China
HS Code
8464109000
Production Capacity
5pieces/Per Months

Packaging & Delivery

Package Size
500.00cm * 300.00cm * 240.00cm
Package Gross Weight
3500.000kg

Product Description

Product Description

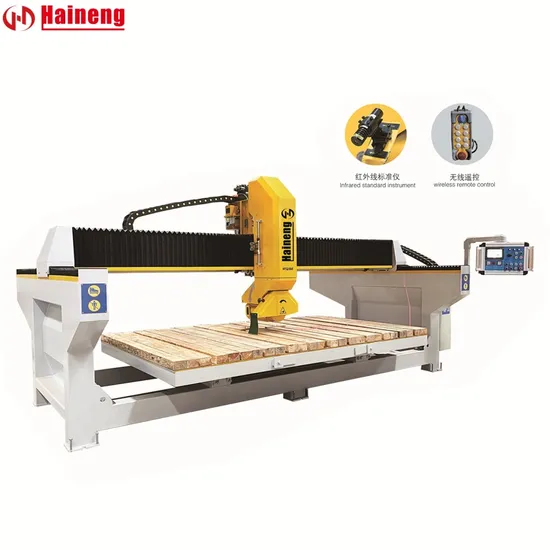

3 AXIS SINTERED STONE SLAB BRIDGE SAW
This series of models are suitable for cutting rock slab, tile, marble, artificial stone, granite, cement products and other building materials, is the ideal equipment for small and medium-sized factories, processing stores.
1 Small floor area: only 15 square meters (length 5 meters x width 3 meters).
2 Simple operation; touch mode man-machine interface, intuitive operation.
3 High configuration: the main core control components using international line brand components,stable performance. long life.
4 High precision: all motion pairs adopt high precision linear guide rail, with high precision helical gear transmission, high precision.
5 Intelligent all motion pairs adopt automatic grease lubrication, escort tor motion pair.
6 Energy saving and consumption reduction: permanent magnet synchronous main motor is optional, which usually saves 30% electricity than three-phase asynchronous motor
7 Craftsmanship manufacturing: every detail of the design and manufacturing so that you can feel carefully crafted, excellence excellent quality!
HTQ350A: Automatic cutting specification plate + Plane slotting (wire drawing) … …
HTQ350B: Automatic cutting specification board + semi-automatic chamfering on both sides + Plane slotting (wire drawing) … … …
HTQ350C: Automatic cutting specification plate + automatic chamfering on both sides + Plane slotting (wire drawing)+ stove+(square) basin hole + line imitation (optional) … … …

Products Recommended
Product Parameters

Product type Unit HTQ350A
Basic type
HTQ350B
Chamfer type
HTQ350C
Basin type
HTQ350D
Four-sided chamfer
Blade diameter mm 350 350 350 350
Worktable size mm 3200×2000 3200×2000 3200×2000 3200×2000
Max. cutting size mm 3200×2000×50 3200×2000×50 3200×2000×50 3200×2000×50
Max. chamfer size mm 3000×1800×50 3000×1800×50 3000×1800×50 3000×1800×50
Saw blade horizontal rotation angle ° 0-90° 0-90° 0-90° 0-90°-180°-270°
Chamfer orientation ° None 0-90° 0-90° 0-90°-180°-270°
Saw blade inclination angle ° None 0-45° 0-45° 0-45°
Turnover angle of worktable ° 0-85° 0-85° 0-85° 0-85°
Rotation angle of worktable ° Default: None(Optional) Default: None(Optional) Default: None(Optional) Default: None
(Optional)
Main motor power kw 15 15 15 15
Host frequency conversion Optional Optional Optional Optional
Total power kw 20.2 20.2 20.2 21
Water Consumption m³/h 3.5 3.5 3.5 3.5
Gross weight kg 3500 3500 3500 3500
Overall dimensions mm 5000×3000×2400 5000×3000×2400 5000×3000×2400 5000×3000×2400

Processing
Packaging & Shipping
Partial Control Element
Company Profile

CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.
