Professional Brotie High Purity Oxygen Analyzer

Product Description

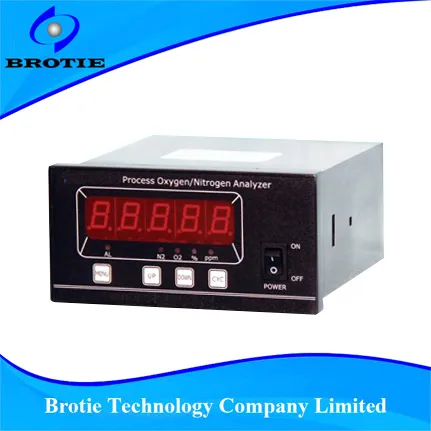

BROTIE High Purity Oxygen Analyzer(Economical model)
Features: New pattern, long-life, with long service life, fast response and high sensitivity; Sensor designed by ion current technology; Menu locking function provided, avoid the misoperation to change the parameters on the analyzer; Automatically memorizing system equipped, operation time of the analyzer will be recorded automatically ; Compact size, simple construction, easy on operation and after service; Industries Served:
It can be used in high purity oxygen production(PSA, VPSA, Cryogenic), metallurgy, health, petrochemicals, and power electronics industries.
Specifications:

Range:	10.00%-96.00%, 10-99.00%(special model)
Accuracy:	±2% of FS range, ±0.2% of 80-99%
Repeatability:	±1% of FS range
Principle:	Ion current technology (can service in Air and inert gases, not corrosive gases.)
Sample gas flow speed:	400~600ml/min
Stability:	±1% of FS/7d
Response time:	90% of FS reading in 60 seconds
Power supply:	220V±10%, 50/60Hz
Signal outputs:	4-20mA
Expected analyzer life:	More than 5 years (in normal condition)
Expected sensor life:	2-3 years (in normal condition)
Installing dimension:	W×H×D=150mm*74mm*167mm

BROTIE High Purity Oxygen Analyzer(Professional model)
Features: New pattern, long-life, conversion ion current tester with fast response and high sensitivity; A standard RS232C interface; Setting alarm value and contact output value arbitrarily; High precision, automatic temperature compensation, eliminating the impact of environmental temperature; Setting upper and lower alarm values arbitrarily during the measurement range; Industries Served:
It can be used in high purity oxygen production, metallurgy, health, petrochemicals, and power electronics industries.
Specifications:

Range:	10-99.99%/50-99.99%/90-99.99%/97%-99.99%O2;auto-ranging
Accuracy:	±0.5% of FS range, ±0.1% of 90-99.99%
Repeatability:	Cv≤0.5%
Preheating time:	300s
Sample gas flow speed:	150~300ml/min
Stability:	zero drift ≤0.5% of FS/7d , span drift ≤0.5% of FS/7d
Response time:	90% of FS reading in 15 seconds
Sensitivity:	0.01% O2
Power supply:	85-265 VAC, 50/60Hz, power loss≤6w
Signal outputs:	4-20mA or 0-5V DC isolated
Contact capacity:	125VAC 0.3A, 110VDC 0.3A, 30VDC 1A
Expected sensor life:	3 years (in normal condition)
Installing dimension:	W×H×D=92mm*92mm*110mm
