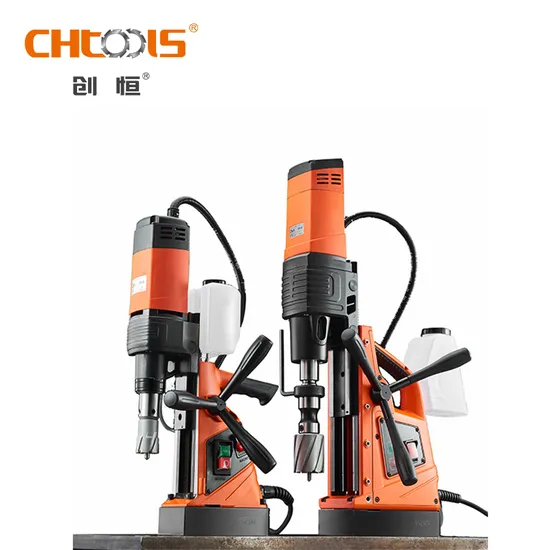

Drilling Machine Chtools up to 35mm Diameter Magnetic Drilling Machine

Drilling Machine Chtools up to 35mm Diameter Magnetic Drilling Machine

US$290.00-300.00 1 Piece (MOQ)

Basic Info.

Model NO.
DX-35
Structure
Deep Hole Drilling
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Motor Rated Power
1100W
Load Speed
450rpm
The Max Cutter Capacity
35mm (1-3/8")
The Max Cutting Depth
50mm (2")
Transport Package
Plastic Box
Specification
55*22*45cm
Trademark
CHTOOLS
Origin
China(Mainland)Zhejiang
HS Code
8207509000
Production Capacity
200000/Years

Product Description

Product Type DX-35
Motor rated power 1100W
Load speed 450rpm
Tool holder 19.05mm (3/4")
Magnetic adhesion 10000N
The max cutter capacity 35mm (1-3/8")
The max cutting depth 50mm (2")
The max diameter of twist drill 13mm
The min cutter depth 10mm
Stroke 120mm
Motor can adjust the height to 95mm
Magnetic drill machine dimension 275*190*400mm
Magnetic base size 167*84*44mm
Total weight 11.0kg
Countersunk drilling 10-35mm

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
After many years of technological innovation and development, the company has more than 110 core independent intellectual property rights patents, including 10 invention patents. The company implements a strict quality management system and has successively passed the ISO9001 quality system certification and the ISO14001 environmental system certification.
In the future, CHTOOLS will devote to become a leading international cutting tool manufacturer, provide you with more effective and better services, become your trusted tool supplier. Production process
