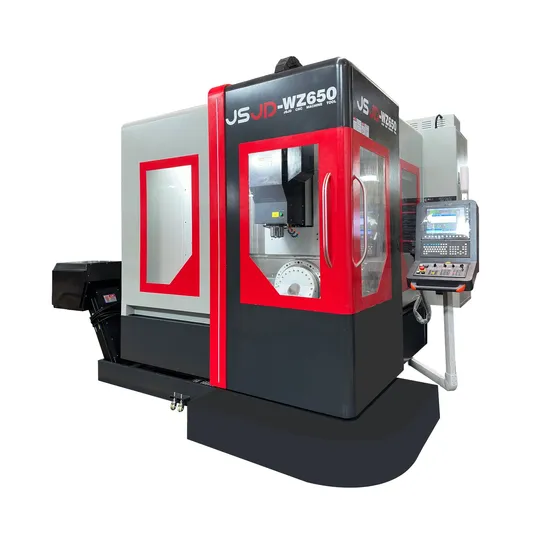

Rtcp Wz-650 5 Axis Vertical Machining Center Metal China CNC Machine

Product Description

Product Description
Machine characteristics:
- High Precision: The DD rotary table, driven directly by the motor, eliminates the backlash and errors of intermediate transmission mechanisms, thereby improving positioning accuracy and repeatability.
- Fast Response: Direct drive motors have high-speed response capabilities, allowing for faster rotational movements and acceleration, thereby increasing machining efficiency.
- High Rigidity and Stability: Since the DD rotary table lacks mechanical transmission components, it reduces vibrations and errors during movement, resulting in higher overall rigidity and stability, which helps improve machining quality and surface finish.
- Maintenance-Free: The direct drive system does not require traditional transmission components such as gears and belts, reducing wear and maintenance needs, and lowering maintenance costs and downtime.
- Flexibility: A CNC machine with a DD five-axis rotary table can perform more complex machining tasks, such as intricate surface machining and multi-angle hole drilling, making it suitable for industries like aerospace, automotive, and mold making that require efficient machining of complex parts.
- Versatility: The DD five-axis rotary table allows a single machine to perform various machining operations, such as milling, drilling, and tapping, reducing the number of workpiece setups and machining cycles, thus increasing production efficiency.
- High Dynamic Performance: DD motors have high dynamic performance, enabling high dynamic response characteristics of the rotary table, which improves dynamic accuracy during the machining process, making it suitable for high dynamic performance requirements.

Product Parameters

Specification		Unit	WZ-650
Travel	X axis	mm	820
	Y axis	mm	520
	Z axis	mm	500
	B axis	°	±110
	C axis	°	360
Controller	System	-	Syntec/Lynuc
	Total axes	-	5
Accuracy(VDI 3441)	X/Y/Z axis positioning accuracy	mm	±0.005/300
	X/Y/Z axis repositioning accuracy	mm	±0.003/300
	B/C axis positioning accuracy	"	±10
	B/C axis repositioning accuracy	"	±5
Spindle	Spindle taper	-	BBT40
	Spindle speed	rpm	12000
	Spindle drive type	-	direct
	Spindle end face to table surface	mm	150-650
	Spindle center to Z axis guide rail	mm	187
	Motor power	kw	11
Table	Rotary table diameter	mm	Φ650
	Maximum processing diameter	mm	Φ650
	Maximum processing height	mm	370
	Table load	kg	300
	T-slots	mm	5-14H7×100°
Screw	X/Y/Z axis ball screw	-	4012/4012/4012
Guide rail	X/Y/Z axis guide rail type	-	roller linear(45mm×2)
Tool magazine	Number of tools	T	24
	Tool length/weight	-	300mm/8kg
	Tool diameter (full/adjacent empty)	mm	ø80-ø150
Feed	X/Y/Z axis rapid feed	m/min	24
	B/C axis rapid feed	rpm	60/100
	Cutting feed	m/min	10
Others	Power	kva	25
	Air pressure	kg/cm2	6~8
	Dimensions	mm	3630×3890×3230
	Weight	T	12.5

Standard configuration: -Direct drive motor 5 axis rotary table
-B/C axis angle encoder -BBT-40 direct spindle 12000rpm -Disc type tool magazine(BT40-24T) -Fully Enclosed Shield -Spindle oil cooler -Industrial refrigeration and air conditioning -Rigid Tapping -Tool checking instrument -Foundation pads and adjusting bolts -Separate electronic handwheel -LED work light -LED three-color warning light -Automatic lubrication system -Tool Cutting Cooling System -Automatic chip flushing function -Ethernet, CF card and USB interfaces -Cleaning water gun -High pressure air gun -Tool box -User manuals -Control circuit information
-Chain chip conveyor
Optional configuration: -BBT40 direct spindle 15000rpm
-HSK A63 18000/20000rpm motorized spindle
-Triaxial grating ruler
-High pressure spindle center outlet system
-Workpiece measuring system
-Oil mist recovery system
-Oil-water separator More products

	Item	Unit	UT-200A	UT-380A	U200A	U-380A	U-400A	U-500A	UM-500B	WZ-650
Travel	X/Y/Z axis travel	mm	600/400/330		600/400/430		820/560/570	1100/700/700	1100/750/500	820/520/500
	Spindle end face to table surface	mm	120-450	90-400	40-470		70-630	60-760	170-670	150-650
	Spindle center to Z axis guide rail	mm	467				630	717	290	187
Rotary Table	Table size	mm	Φ200	Φ260	Φ200	Φ260	Φ320	Φ400	Φ400	Φ650
	Table load	kg	20	60	20	60	70	200	150	300
	Maximum machining height	mm	200	300	200	300	260	380	480	370
	Mmaximum rotating diameter	mm	Φ240	Φ380	Φ240	Φ380	Φ450	Φ500	Φ620	Φ650
	T-slots	mm	4-12H7×90°					8-14H7×45°		5-14H7×100°
Controller	System	-	Syntec/Lynuc
Spindle	Speed	rpm	20000		12000/15000
	Taper	-	BT30		BT40		BBT40
	Motor Power	kw	5.5		7.5		11
Feed	X/Y/Z axis rapid feed	m/min	48/48/48				36/36/36		30/30/30	24/24/24
	X/Y/Z axis cutting feed	m/min	10/10/10
Accuracy	X/Y/Z axis positioning accuracy	mm	±0.005/300
	X/Y/Z axis repositioning accuracy	mm	±0.003/300
	A/C axis positioning accuracy	"	±10					±15	±10
	A/C axis repositioning accuracy	"	±5					±10	±5
Others	Air pressure	kg/cm²	6~8
	Capacity	kva	15		20		25	30	25
	Dimension	mm	2000×2620×2450		2030×2475×2640		2880×2850×3110	3380×3290×3300	3170×4250×3400	3630×3890×3230
	Weight	T	4.2	4.4	4.5	4.7	6.5	8	6.5	12.5
