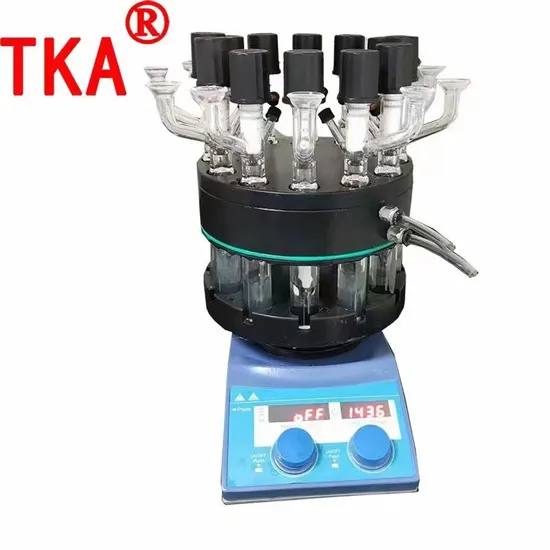

250ml Factory Price Tube Parallel Synthesis Reactor

Product Description

Product Description
Parallel high pressure reactor is called high pressure rectification, it is a kind of new reaction synthesis scientific research instrument combining the basic principle of synthetic chemistry and the idea of combinatorial chemistry.The commonly mentioned high pressure parallel synthesizer, parallel reactor, parallel synthesizer, organic synthesis device, parallel catalytic screening and evaluation and other reaction devices are other titles of this kind of instruments.It is one of the necessary equipment for exploring reaction route, optimizing condition and efficient synthesis in modern synthetic chemistry research and development.Parallel reaction is suitable for modern reaction synthesis equipment with strict requirements on system anhydrous and anaerobic and air tightness, wide temperature control range, accurate temperature control precision, strict reaction safety, high scientific research efficiency and good repeatability.
Product Parameters

Model	GPXF-6-100	Type	Inderpendent Parallel Reactor
Host	RCT Imported from Germany	Reactor	Material 316L Stainless Steel/Hastelloy C276
Sensor	PT 1000 Imported from Germany	Module	6 Holes/8 Holes/10 Holes/12 Holes Heating Module
High Temperature	300ºC	Needle Valve	Material 316L Stainless Steel/Hastelloy C276,3000PSL
Link	Shunt Line,Inlet Valve,Vent Valve	Safety Valve	Hastelloy C276,10Mpa,Pressure Relief Value≥10.1Mpa
Thermometry	Main Engine Heating and Kettle Inside	Sampling Device	6 Pieces, Made of 316L Stainless Steel
Heating Power	800(W)	Reaction Volume	25ml/50ml/100ml/200ml(Choosable)
Speed of Agitator	2000RPM	Dimensions	365*400*480(mm)
Gas-filled Hose	Withstand Voltage 15Mpa,1.5m in length	Reaction Lining	PTFE/PPL/JDS2 quartz glass
Precision Pressure Gguge	Pressure and Shockproof Pressure Gauge	Gas Diverter	6/8/10/12-way shunt Material 316L Stainless Steel
Range of Application	Multiposition crystallization reaction, multiposition hydrogenation reaction, etc

Package Detail
1) Wooden packing
2) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
3) You can choose your own freight forwardwe as well.
4) Door to Door Delivery to save your energy and time. We'll take the all risks during transportation.
Shipping Details
1) AMERICA:3-8 working days.
2) ASIAN:3-8 working days.
3) EUROPE:5-10 working days.
4) OCEANIA:4-9 working days.
5) AFRICA:7-13woring day.
Company Profile
Xi'an Taikang Biotechnology Co., Ltd, is a famous manufacturer of Lab equipment located in the central China. Now has TAIKANG, TKA two well-known brand trademarks. The main products include ultra-high temperature and high pressure reactor, high pressure photochemical reactor, supercritical high pressure reactor, high pressure glass reactor, micro high pressure reactor, high pressure ultrasonic reactor, Ultra-high temperature hydrothermal synthesis reactor, photocatalytic reactor, visual catalytic reactor, hydrothermal synthesis reactor, rotary evaporator, parallel synthesis reactor, high and low temperature circulator, high and low temperature high pressure tubular reactor and other equipment and so on.
Specialize in this field for more than 20 years,TKA brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special for university, research institutes, industries, inspection agencies, etc. Promoting technology progress and improving human life is TKA social mission.
We welcome new and old customers from all over the world to contact us for future business relationships and achieving mutual success!!Exhibition Show
Certifications
FAQ
Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all TKA products are supplied with a warranty of 12 Months from the date of shipment.
Q5: Do you accept OEM and ODM orders?
A5: Yes,We accept.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 40% T/T in advance, balance before shipment.
Q7:Can we visit your factory?
A7: Welcome visit our factory.
