200L Double Ring Drum Slzk L Ring IBC Packing Barrel Blow Making Machine

Product Description

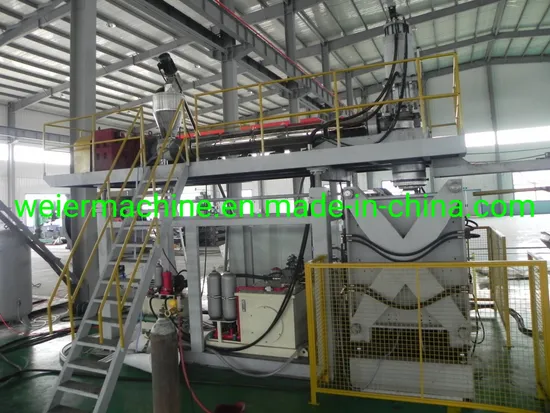

200L double ring drum SLZK L ring IBC packing barrel blow making machine
single double layer 200 liter plastic drum water storage barrel tank blowing molding machine,mainly used in chemical packing containers.Our company with many years of production experience ,by using advanced production technology,equip with Japanese Moog wall thickness controller and servo valve,also woth dedicated highpreformance industrial PC computer control system,powerfull software function to ensure optimization of process parameters and fault diagnosisi,so that the production and management are more convinient and intuitive.
Our advanced production technology and strict quality management system let our client's products get our national quality inspection and quarantine identified ,respectively,with the" international maritime dangerous good transport rule"1.2 categories of dangerous goods transport standards,access to the "dangerous product quolity packing container permit",base on our stong technical support,improving after sales service.

Main technical parameter of 200L double ring drum SLZK L ring IBC packing barrel blow making machine

system	item	220L L ring		1000L IBC
		1 layer	2 layers	1 layer
extruder	screw diameter(mm)	120	100/100	110/100
	L/D	30/1
	Driving motor power(kw)	132	75/75	90/90
	heating power(kw)	28	44	52
	extrusion capacity(kg/h)	330	350	420
moulds die head	materials storage volume(L)	22		45
	parsion control	100 dot MOOG wall thickness controller
	die lip size range(mm)	200-250		600
	heating power(kw)	36	40	50
moulding clamping system	mould size(mm)	1600*1500
	clamping force(kn)	800		1200
electrical control cabinet	temperature controlling	SIEMENS temperature-control modules
	PLC	SIEMENS
	touching screen	SIEMENS
Hydraulic system	main oil pump motor(kw)	37		45
	servo motor(kw)	7.5
Basic Parameter	outer size L*W*H (m)	7*4*5		9.6*5*6
	total power installed(kw)	210	239	281
	average power consumption(kw)	120	143	168
	weight(t)	20	24	33

Electrical parts list of 200L double ring drum SLZK L ring IBC packing barrel blow making machine

Main motor	Siemens
Inverter	ABB
Temperature control	Siemens
mold of pvc edge band	customized
PLC control	Siemens
Programe control	Siemens
Other electrical parts	DELIXI

Detailed description of 200L double ring drum SLZK L ring IBC packing barrel blow making machine
Save time and effort when replacing the mold,die head with upper machine platform can lift simultaneously,clamping system can be whole remove adjustly,replacement of the molds is safe and convenient
Plastizing system:screw with forced feeding,seperation type structure,to ensure plasticizing effect,increase productivty,and hard gear reducer with stepless frequency control,make screw speed stable,effiecient and reliable
Siemens touch screen and PLC control system,man-machine interface,process set to change,retriecal ,monitoring,troubleshooting,are all finished on the touch screen,user-friendly desigh,to make your job easier
Company information
Qingdao Weier Plastic Machinery Co.,Ltd ,the professional manufacturer of plastic machines,which is engaged in macromolecule science,is the director member of WPCC (plastic & wood production council of Chinese plastic community). We cooperated with many domestic universities to develop special plastic machines to meet domestic and foreign customer's requirement .
Now we become the test and industrialization centre of plastic engineering technology research institute Qingdao Science and Technology University. At the same time we bring in and absorb advanced processing engineering of foreign plastic machines.To realize chain service of technics and machines.
We have more than 30 machine lines running in China market; Welcome to visit us, and also can show the machine line running in client's factory.
Why choose Weier
1.We are engaged in macromolecule science, is the director member of WPC (plastic & wood production council of Chinese plastic community)
2.We cooperated with many domestic universities to develop special plastic machines to meet domestic and foreign customer's requirement.
3.We become the test and industrialization centre of plastic engineering technology research institute of Qingdao Science and Technology University.
4.we bring in and absorb advanced processing engineering of foreign plastic machines to realize chain service of technics and machines.
5.We have experiences in this field since 1980s
6.We have our production bases for WPC and plastic product in China with large scales, which shows our machine's production power
7.We have strong technical teams and cooperate with China scientific institution to develop, improve and test our machine, to ensure what customers get are the most reliable machines from China.
8.We select the most reliable mechanical and electrical parts for our machine with all famous reliable brands, with European CE certificated.
9.We put our heart into every business with aim of long term cooperation.
10.We have perfect service system-- Our president is devoting himself to pre-sale, on-sale and after-sale service. WEIER JUST DO WIN-WIN BUSINESS!!!

FAQ
Q1.How to pay to you?
A:1)30% of total amount paid by TT as advance, then the seller start production
2)after the machine is finished ,buyer come to test the machine in seller's factory ,
and then pay the 70% balance by TT or irrevocable L/C at sight . Then seller ship the machine.
Q2.How long is the delivery time?
A: For standard machines, it would be 30 days; For non-standard machines and customized machines according
to client s specific requirements, it would be 45 days.
Q3.Do you arrange shipment for the machines?
A:Yes,for FOB or CIF price, we will arrange shipment for you.
Q4.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List,
Commercial Invoice, B/L, and other certificates as required by clients.
Q5.What's your after-sales service ?
(1)The supplier provides service manual and maintenance instruction of main electric appliances, limb, usage manual of equipment. We also supply water, electricity, gas of equipment and installation drawing. (2)The supplier is responsible for installation, debugging and training, but the air tickets, insurance, eating, housing and every day 50 USD for each engineer will be born by the buyers. We will realize guarantee of repair; replacement and refund of substandard products within one year after the machine leaves factory. And half a year for electric parts. Fittings of the machine will be supplied at preferential price after one year.
Q6.What's your warranty?
We will realize guarantee of repair; replacement and refund of substandard products within one year after the machine arrived in customer's factory (except destroyed by buyers' wrong operation). We guarantee the material of screw & barrel (guarantee without normal abrasion). And half a year for electric parts. Fittings of the machine will supply at preferential price after one year.
Contact us!!!
Qingdao Weier Plastic Machinery Co.,Ltd
Add:Middle Pingcheng road ,East of Jiaoxi Industrial Zone,Jiaozhou City ,Qingdao China.
Contact name:Ms.Amanda LI
Mob:+86 13705422746
Whatsupp app:+86 13705422746
