Tsl8 Full-Automatic Slant Bed CNC Metal Turning Lathe with Turret Tool

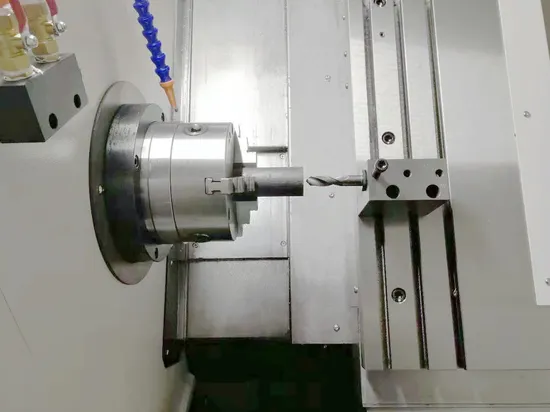

Product Description

Product Description
Product structure and features-frame and torque diagram
Automation and efficiency: Equipped with multi station turret or power turret, it has a wide range of process performance and can process complex workpieces such as straight lines, cylinders, oblique cylinders, arcs, and various threads, grooves, worms, etc. It has various compensation functions for straight line interpolation and arc interpolation, suitable for mass production of complex parts.
High precision machining:The layout of the inclined bed CNC lathe directly affects the clearance of the X-direction ball screw, and gravity acts directly on the axial direction of the screw, which helps to improve machining accuracy and stability.
Multifunctionality: Modern inclined bed CNC lathes are usually equipped with multi axis systems, which can perform multi-directional machining. They can not only perform traditional turning, but also complex machining operations such as milling and drilling, improving the overall machining capability of the machine tool.
The application fields of inclined bed CNC lathes are wide, including automobile manufacturing, aerospace, mold manufacturing, etc. Among them, the production of automotive parts is one of its important application fields. This type of machine tool plays an important role in modern manufacturing due to its high precision and efficiency Casting treatment
Tempering treatment in casting factory
Aging treatment in factory more than 180 days

High rigidity and high speed linear guide way ensure machine more stable and precision

Headstock hole boring by special purpose machine;
Diameter error within 0.005mm. Roundness error within 0.002mm

Spindle noise not more than 80dB
Spindle temperature rise within22 ºC
The temperature difference within 5 ºC

High-end testing equipments

Roundness meter

Each machine will be inspected by laser interferometers before delivery

Machine model	TSL8
Max swing over bed	Φ500mm
Swing dia. over slide	Φ160mm
Turnning diameter	Φ300mm
Turnning Langth	450mm
X travel	190mm
Z travel	450mm
X/Z fast moving speed	X/Z:20/20m/min
Spindle max speed	4000rpm
Spindle model	A2-6
Spindle taper	Metric 80
Spindle hole diameter	Φ65mm
Through bar diameter	Φ50mm
Tailstock travel	60mm
Tailstock daimeter	Φ52mm
Tailstock taper	MT4
Turret	8T/80 servo turret
Square tool size	25*25
Boring tool diameter	Φ32
Chuck size	8 inch hollow hydraulic chuck
Overall dimension	2332*1900*1880mm
Net weight	3700kg
