12V 24V 36V 48V 72V Customized State-of Charge Hour Meter Spi-840 in Electrical Scooter

Product Description

Product Description
The Curtis 840/841 gauges are stable, multifunctional electric vehicle gauges that can indicate various system parameters, such as battery charge status, runtime and maintenance status. Ideal for material handling vehicles, order picking forklifts, and other equipment requiring serial serial signals to display data.Void of moving parts, this combination instrument is exceptionally reliable even in severe operating environments.
The Instrument cluster is ideal for use in material handling vehicles such as pallet trucks, walkies, stackers and order pickers as well as other equipment with a need to display battery state of charge, operating hours and controller fault codes.

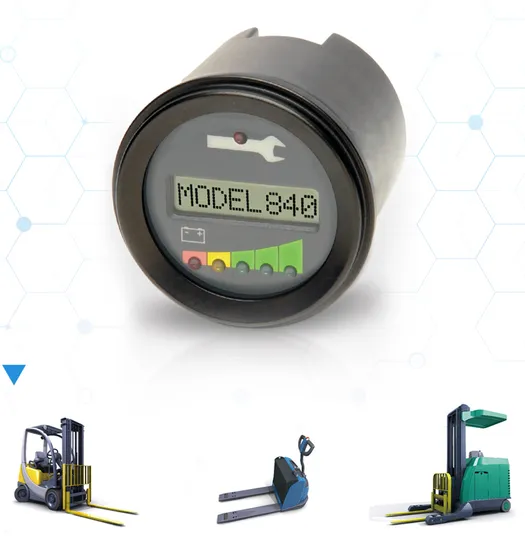

*Product name: Curtis Multifunction 840 Meter
*Electrical Operating Voltage
*Operating Current:
015R=12 to 15VDC
024R=18 to 30VDC
*Model code: 840R015RFBA101N

Being a communication device, Model 840 will operate with user intervention based on signals received from a Curtis motor controller. Upon initial power-up, the instrument will go through a self-diagnostic routine in which all display elements will be illuminated for 1 second and then blanked for 1 second.The LCD will then display "all asterisks" until the firstmessage is received. The information on the display will then be controlled by the Curtis motor controller

Mechanical
Display
8-character, alphanumeric, dot-matrix LCD
Molex 8-pin Mating Information:
Connector: 39-01-2085
Terminal (18-24 AWG): 39-00-0039
Terminal (16 AWG): 39-00-0078 Environmental
Operating Temperature Range
-10°C to +70°C (Standard Model)
-40°C to +70°C (Freezer Model)
Enclosure Protection
IP65 (Face), IP40 (Rear) NSTALLATION
Model 840 fits into a dash-panel cutout measuring 2-1/16" (52mm) **General product:1234/1236/1238 curtis controller and other controllers are used


Product inforformation :

Function	BDI / Hour Meter
Hour Meter	Yes
Display	Tri-Color, 10-bar LED
Lift Lockout	Yes
Output	1 Amp Relay
Mounting	U-bracket
Interconnect	Molex Connector
Low Fuel Warning	Two LED Bars Flash Alternately
Adjustable	1
Housing	52 mm round
Keyswitch Input	Yes
BDI Reset Method	CTR, OCR
Operating Voltage [VDC]	12 - 80

FEATURES Available with "Spy" or CANopen communication protocols allows use with broad range of controllers. Attractive, easy-to-read, 8 character dot matrix Liquid Crystal Display enhances the look of any vehicle. Two display versions available: Three LEDs: Green to indicate that hour meter is being displayed; Amber to indicate that battery state-of-charge is being displayed; and Red to indicate that a fault has occurred. Six LEDs: 3 Green, 1 Yellow and 1 Red to indicate battery state-of-charge; and 1 Red to indicate that a fault has occurred. Standard models display information from Curtis motor controllers including hours of use, battery state of charge and error/diagnostic messages. Interfaces directly to Curtis motor controllers and displays various system parameters. Molded-in rear Molex style connector provides a low-cost, rugged and reliable installation. Front sealed (IP65) for use in harsh environments Scene description
