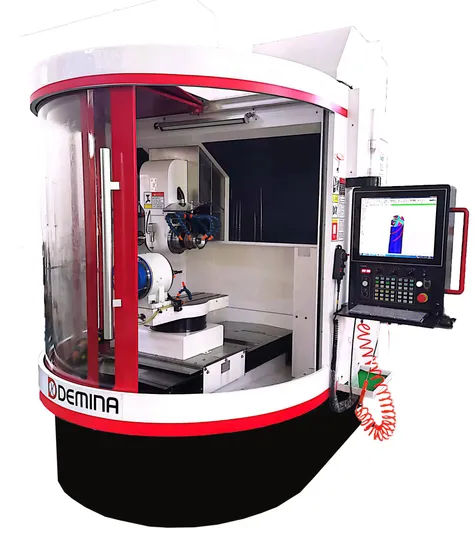

Dm300 5 Axis CNC Tool Grinder

Product Description

DM- 3 0 0 five- axis CNC tool grinder is a CNC tool production machine developed for
full grinding tools. The machine tool is a five-axis and five-link machine tool, in which the X,Y
,Z is a linear servo shaft and the A,C two axes are rotating shafts. It is specialized in the
production of standard milling cutters, drill bits, reamers, non-standard cutters, molding knives and
other cutting tools, with low efficiency, high precision CNC tool production equipment.In high-
speed steel, cemented carbide milling cutter manufacturing field has extraordinary advantages.
.The characteristics of machine:
1 . can be equipped with advanced man-machine dialogue CNC system, not only G code
programming,but also can use tool software.The system is safe,stable, convenient and resistant to
electromagnetic interference. The program transmission between CNC and PC can be realized by
Ethernet interface and USB2 . 0 , and the productivity can be greatly improved by starting with the
shortest processing lead time.
2 . equipped with 3 D simulation software, the necessary parameters of tool machining are
displayed in the way of dialog box.After the parameters are input,the tool simulation can display
the 3D graphics of tool and the grinding steps of machine tool.The anti-collision function of the
software is used to avoid the collision in the actual process.
3 . the corresponding software module can be used to process all kinds of cutting tools.By
selecting and installing probes, the workpiece can be automatically measured and the tool wear
can be compensated,that is,the tool can be produced and the tool can be milled.
4.heavy-duty design,high-power,gantry type closed structure,good rigidity,high
strength,good stability.
5.original imported wire rod,guide rail,A shaft-C shaft and key parts to ensure high
accuracy,high sensitivity and good stability.
6 . rotary shaft with imported original product high- precision worm gear and worm, high
smooth transmission accuracy.
7 .can be installed with top and simple support points for long tool production.
II. Scope of use of DM-300 tool grinders:1.processing materials:high-speed steel,cemented carbide and stainless steel with the
diameter of 3-32mm;
2 .machinable tool category:milling cutter: cylindrical end tooth milling cutter, cylindrical
end tooth milling cutter,cylindrical R milling cutter,conical end tooth milling cutter,conical end
tooth milling cutter,multi- edge milling cutter,left and right spiral cutter,welding milling cutter,
non-standard cutter,molding cutter,custom cutter.
3 .bit,reamer: all kinds of left and right spiral blade,straight groove edge,standard,non-
standard bit,reamer.
4.parts:five-axis grinding in product parts
