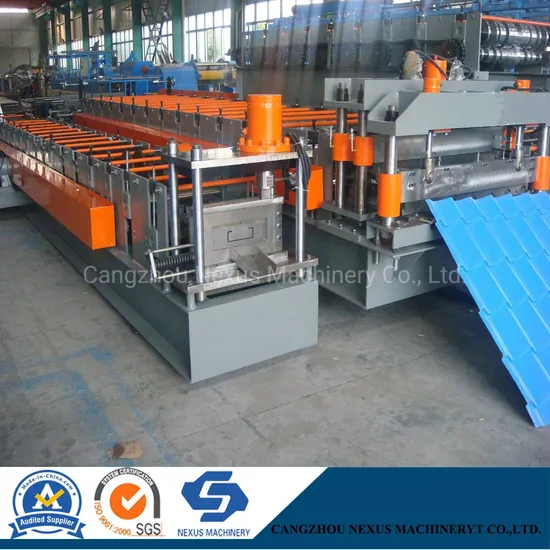

Direct Factory Manufactures C Channel Roll Forming C Section Purlin Machine C Purlin Roll Former

Direct Factory Manufactures C Channel Roll Forming C Section Purlin Machine C Purlin Roll Former

US$12,000.00-18,000.00 1 Set (MOQ)

Basic Info.

Model NO.
NM301
Certification
CE, ISO9001
Customized
Customized
Condition
New
Control Type
Electric
Automatic Grade
Automatic
Product Name
C Channel Roll Forming C Section Purlin Machine
Coil Material Thickness
1--3mm
Processing Material
Galvanized Steel
Roller Material
Cr12MOV
Roller Station
12-18 Stations
Driven
Chain Transmission
Forming Speed
10-15m/Min
Punching Type
Hydraulic Punching
Cutting Type
Hydraulic Post-Cutting
Operation Type
Touching Screen
Transport Package
Plastic Film
Specification
80-300
Trademark
Nexus Machinery
Origin
Cangzhou
HS Code
8455221000
Production Capacity
10

Product Description

Direct Factory Manufactures C Channel Roll Forming C Section Purlin Machine C Purlin Roll Former

Direct Factory Manufactures C Channel Roll Forming C Section Purlin Machine C Purlin Roll Former maximum production speed: not less than 10 meters per minute (for non-perforated profiles, excluding cutting);
Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified in EN 10162 (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades, when observing the products under magnification ten times.
If you have your own special requirements,our machine can be also customized.
Technical parameters :
Product Name Direct Factory Manufactures C Channel Roll Forming C Section Purlin Machine C Purlin Roll Former
Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 19.5 kw
Power Supply 380V, 3-Phase,50Hz
Forming Speed 12-24m/min
Roll Station 18 stands
Decoiler capacity 3.5 tons
Roller Diameter 80mm
Effective Width 80-300mm
Feeding Thickness 1-3.0mm
Backboard Thickness 20mm
Cutter Standard GCr12
Roller Standard Gcr15#
Overall Size About 8500×1000×1400mm
Total Weight About 10T
Custom According to customer's requirements

ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.
Company Certificates:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
