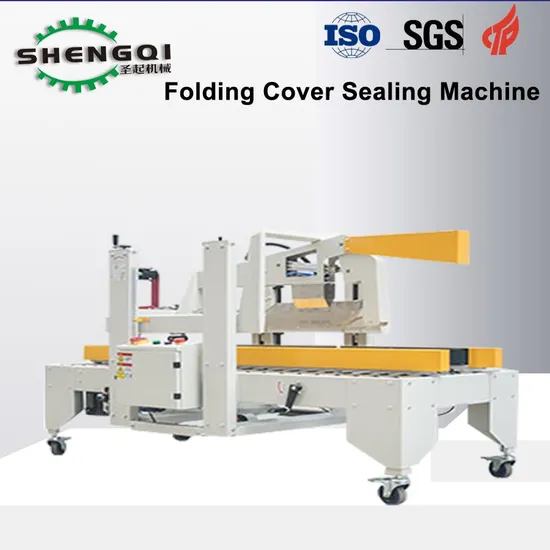

Automatic Carton Folding and Tape Sealing Machine Box Top Bottom Packing Machine

Product Description

Automatic Carton Folding and Tape Sealing Machine Box Top Bottom Packing Machine Product Description Automatic folding carton sealer adopt left and right belt driving and pneumatic folding cover mechanism, Acme thread leadscrew adjustable mechanism for heigt and width, high strength structure, make the machine performance reliable, and can meet continuous heavy sealing work in the production line. Can manually adjust the sealing size for the same specifications carton sealing together.
Automatic carton have the advantages of simple operation, convenient and easy adjustment, fast sealing speed, high efficiency, strong and durable. can stand-alone working and can also work with automatic production line or automatic carton erector.
Benefits and Advantages 1.Imported advanced parts,electrical and pneumatic components,high quality, stable performance.
2.The height and width can be adjustable for different dimension of carton.
3.Left and right belt drive design for drive more stable during working process. 4.Bigger electrical machine, faster conveyor speed. 5.Cutter safety system to prevent hands from stabbed by the cutter. 6.Especially suitable for more heavier goods. 7.48-60mm width of adhesive tape. 8.Simple operation, convenient and easy adjustment, fast sealing speed, high efficiency, strong and durable

Product Parameters

Voltage	220V/380V 50/60HZ (other country can be customized)
Power	300W
Air Supply	5-6kg/cm³
Suitable Carton Size	L200-500mm, W180-500mm, H150-500mm (Can be customized according to carton size)
Suitable Carton Weight	Max20kg ((Can be customized for higher weight)
Sealing Speed	17.5m/min
Suitable Tape Width	48/60/75mm
Machine Size	L1800*W880*H1450mm
Machine Weight	280kg
