US$43.00-100.00
|
1 Piece
(MOQ)
|
Basic Info.
Structure
Double-Eccentric Sealing
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Medium Temperature (120°C<T<450°C)
Material of Seal Surface
Soft Sealed
Application
Industrial Usage, Water Industrial Usage, Household Usage
Body
Wcb/CF8/CF8m/2205/C95400
Disc
CF8/CF8m/2205/C95400
Seat
EPDM/NBR/PTFE/FKM/Rptfe
Transport Package
Carton/Wooden Case
Production Capacity
100000units

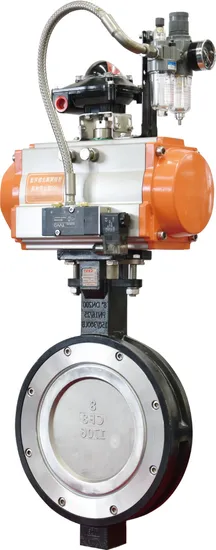

Product Description
1. No pin connection between Disc and stem
Stem through the valve plate, the use of hexagonal design of the clamp to drive the valve plate, is our unique design characteristics. This design prevents the stem from coming into contact with the medium in the line . And this structure makes the valve disassembly simple, just take out the circlip spring and then pull out the stem from the valve plate. Pinless butterfly valve Cv value is higher than other similar products, less turbulence, good pressure recovery.
2.Compatibility Top flange meets ISO5211 standard. Manual and electric actuator can be installed directly. Extended neck for all valves. The pipe insulation must be at least 50mm long. The standardized design allows our actuators (handle, gear reducer, pneumatic and electric actuators) to be mounted directly on the valve without support. Easy field installation, reduced error and height. 3.Disc design features
One-piece design, the edge of the spherical machining and hand polishing, has the advantages of low torque force, long service life of the seat and good sealing performance. When applied in the field of health, it can completely prevent the storage of dust particles. Valve plate surface can be sprayed: PTFE, ETCFE, nylon, tungsten carbide, ceramic, or coated ethylene propylene, butyl blue, fluorine rubber, PTFE and other rubber or anticorrosive material surface, prevent metal surface erosion and corrosion. Valve plate mandrel design has better bearing effect. The valve plate is built with hexagonal groove, which closely matches the valve stem.
4.Design characteristics of bushing packing Blowout proof design:The valve stem is prevented from blowing out by the anti-blowing circlip, and it is convenient to disassemble and assemble.
Shaft sleeve:Corrosion resistant PTFE valve bushing or copper bushing can absorb side thrust under heavy load
Valve shaft packing:Self-expanding Y-ring packing and O-ring double seal design, can ensure the absolute two-way seal.
Certifications
product display
Design&Development -UG,AutoCAD
Dimension Measurement Inspection
Certificates-ISO9001,ISO45001,ISO14001 SGS
letters patent
