Fully Automatic Cable Cut Strip and USB Soldering Machine

Fully Automatic Cable Cut Strip and USB Soldering Machine

US$1,950.00-39,900.00 1 set (MOQ)

Basic Info.

Model NO.
WL-USB22
Applicable Cable
2/3/4-Core Round Cable
Cable Diameter
2.8-5.0mm
Working Speed
1200PCS/Hour, and One Person Can Operate 5 to 10 U
Air Pressure
0.5-0.8MPa
Noise Decibel
About 30-45dB
Weight
About 900kg
Dimension
3.85m X 0.76m X 1.7m
Transport Package
Wooden Case
Specification
56*68*62cm
Trademark
Crown
Origin
China, Jiangsu
HS Code
8465960000

Product Description

Fully Automatic cable Cut Strip and USB Soldering Machine
Introdution:
This is a machine for fully automatic production of USB charging cables. It cuts, strips and solders the USB connectors on both ends of the cable. The machine can be started with one key, and the hot and cold peeling can be switched with one key. The production capacity can reach 1200pcs/hour (depending on the cutting length). One worker can operate 5 to 10 machines, which will save you 5-50 workers. ○ Function: cutting, cold and hot stripping, two-ends USB connector soldering
○ Patented technology: automatic color separation, automatic wire separation, integrated hot and cold stripping, automatic testing
○ Capacity: 1200pcs/hour (depending on the cutting length)
Technique parameter:Features:
Model WL-USB22
Applicable cable 2/3/4-core round cable
Wire diameter 2.8-5.0mm (others need to be customized)
Working speed 1200pcs/hour, and one person can operate 5 to 10 units
Voltage and power 220V AC, 1.2 KW/h
Standard air pressure 0.5-0.8mpa
Noise decibel about 30-45DB
Patented technology automatic color separation, automatic wire separation, integrated hot and cold stripping, automatic testing
Weight about 900kg
Dimensions 3.85m x 0.76m x 1.7m (Length x Width x Height)

Product show:

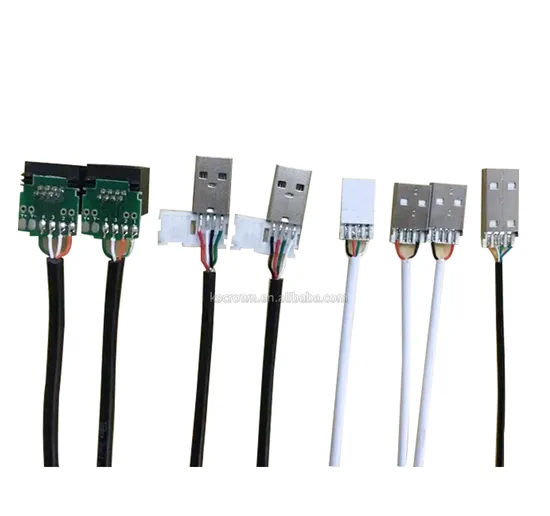

Machine processing samples:
Packing & Shipping:
For small and light products packed by cartons,for large and heavy products packed by wooden

Related products:
FAQ:
1.How to order?
Please contact my Email for much more details, you can place order with us directly
or through ****** online transcation after confirmation.
2.What's your payment terms?
We accept trade assurance order, T/T,L/C, western union, Paypal etc.
3.How long does the production time?
Generally 3~7 days, if there's customized model or other request will be adjusted.
4.How do you packaged the products?
Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.
5.What can you provide for us?
Our service
We provide:
· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.
